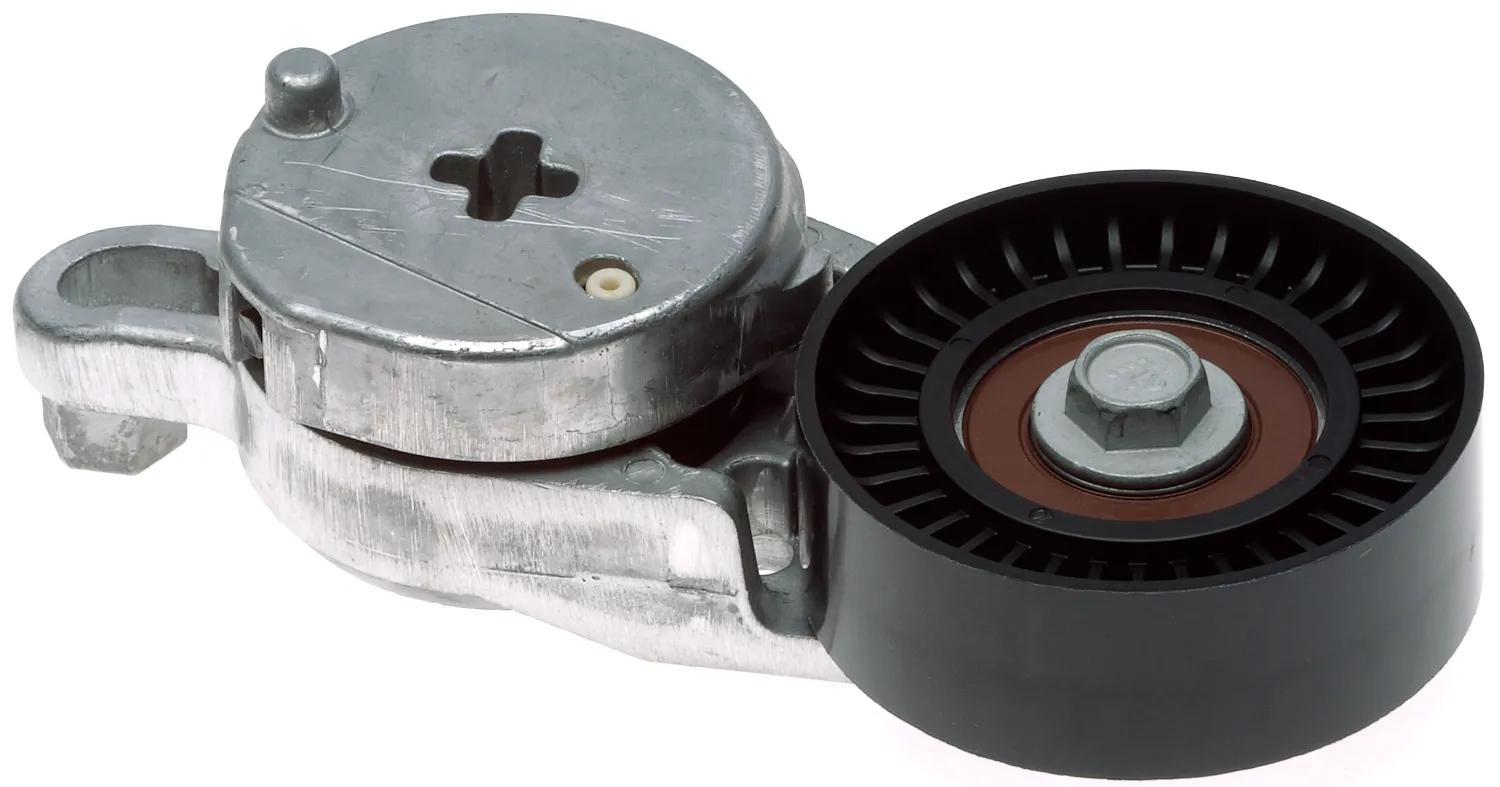

Belt Tensioner Assy, Hole: 1
#GAT39096
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 2-49/64 in (7.04 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 15/16 in (2.39 cm) |
Interchanges & Equivalent parts:
| 49438 |
| 89660 |
| 999912 |
| 999912A |
| 166200V010 |
| 1662036030 |
| 39096 |
| 305660 |
| 4054 |
