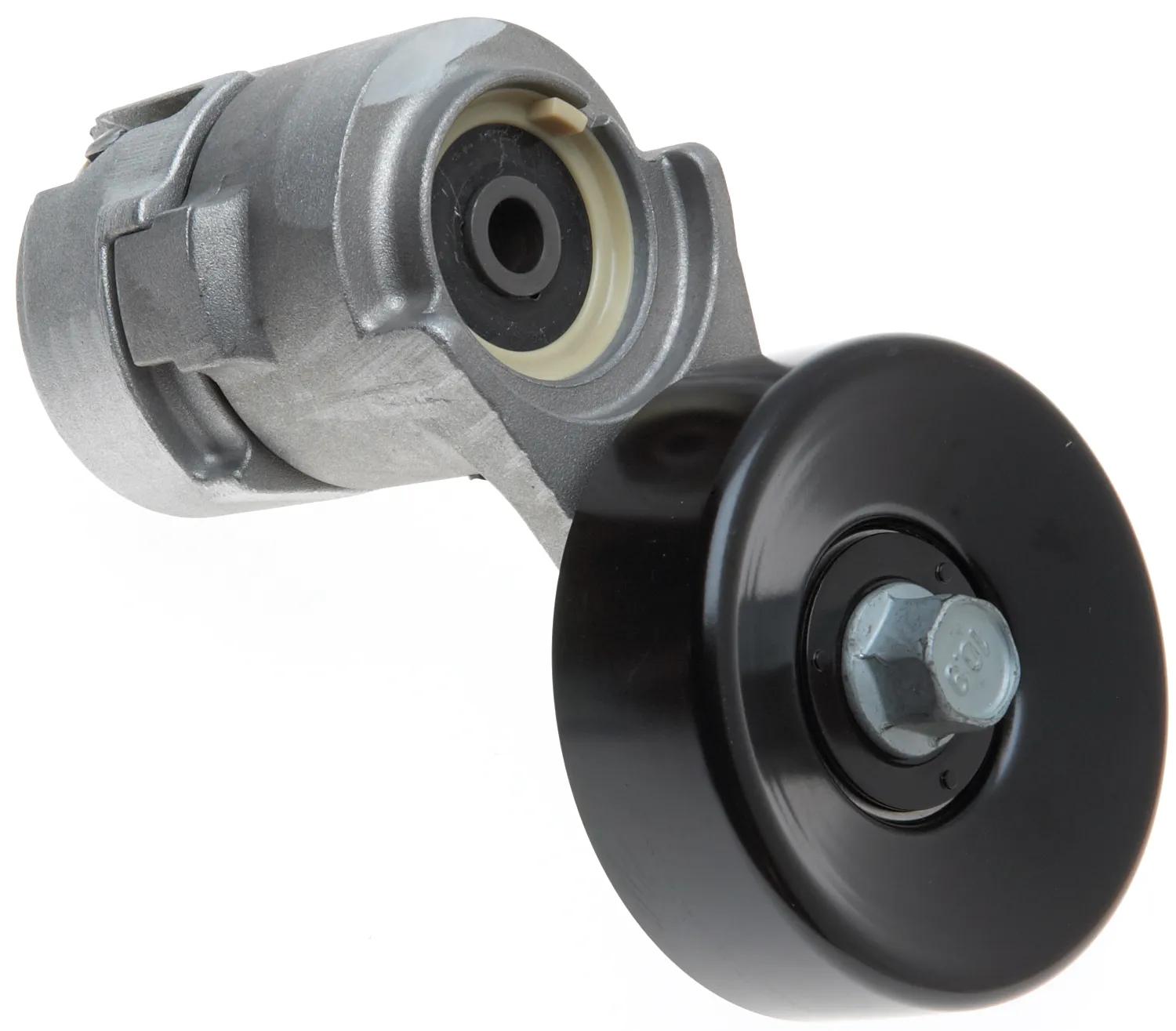

Belt Tensioner Assy, Hole: 1
#GAT39150
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/8 to 1-1/4 in (2.87 to 3.18 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Steel |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 3-35/64 in (9.02 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-9/64 in (2.9 cm) |
Interchanges & Equivalent parts:
| 49447 |
| 252813E000 |
| 252813E010 |
| 252813E011 |
| 89678 |
| 999365 |
| 999365A |
| 39150 |
| 305678 |
| 4098 |
