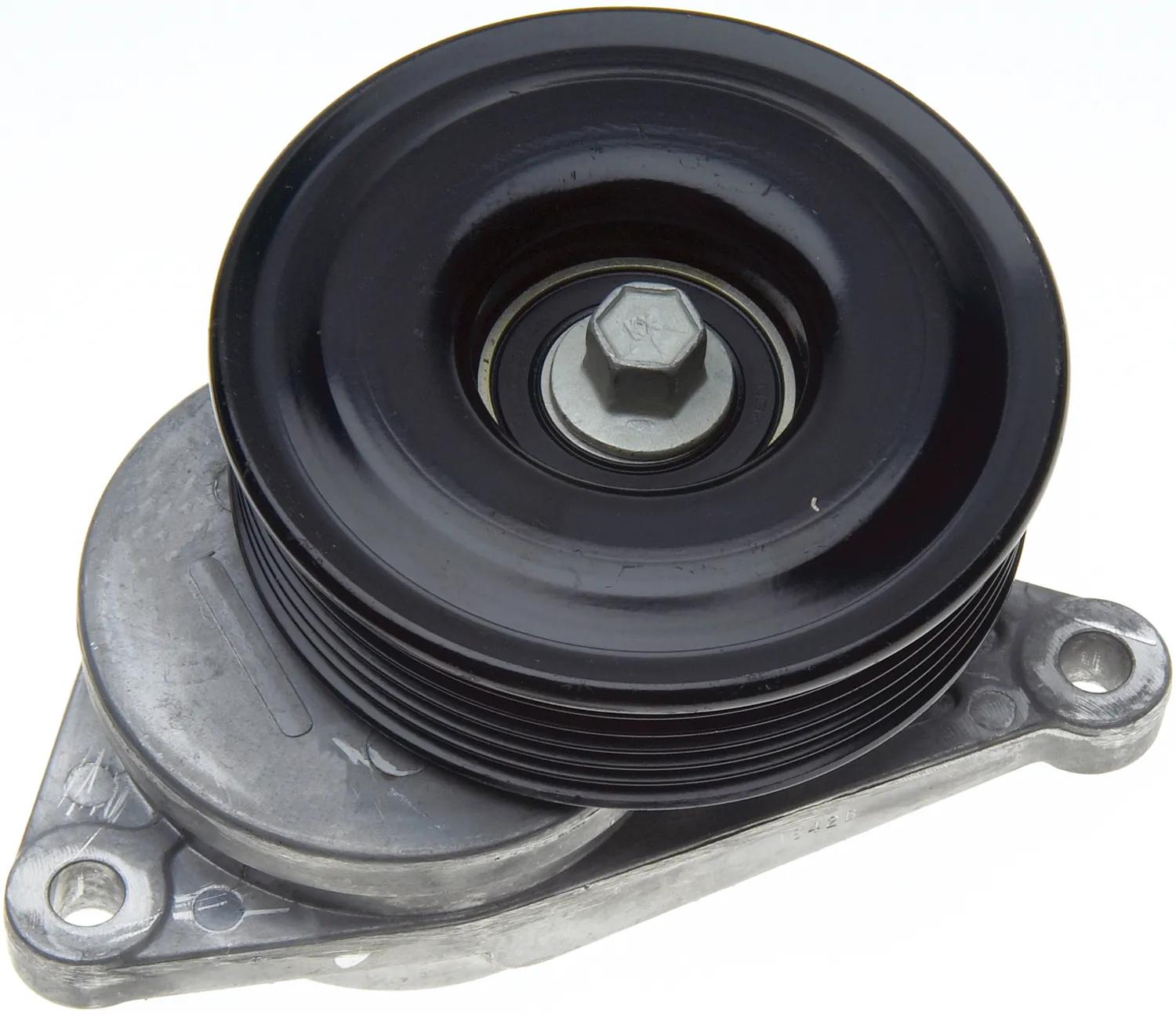

Belt Tensioner Assy, Holes: 2, Grooves: 6
#GAT38160
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1 to 1-1/8 in (2.54 to 2.87 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy, |
| Material | Steel |
| Number Of Mounting Holes | 2 |
| # of Grooves | 6 |
| # of Pulleys | 1 |
| Outside Diameter | 3-5/32 in (8.03 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-1/16 in (2.69 cm) |
Interchanges & Equivalent parts:
| 305307 |
| 49277 |
| 38160 |
| 89307 |
| 999035 |
| 999035A |
| 94BB6A228AD |
| F7RZ6A228AA |
| 419218 |
| F5RZ6A228AA |
| 419-218 |
| 94BB 6A228 AD |
| F5RZ 6A228 AA |
| F7RZ 6A228 AA |
