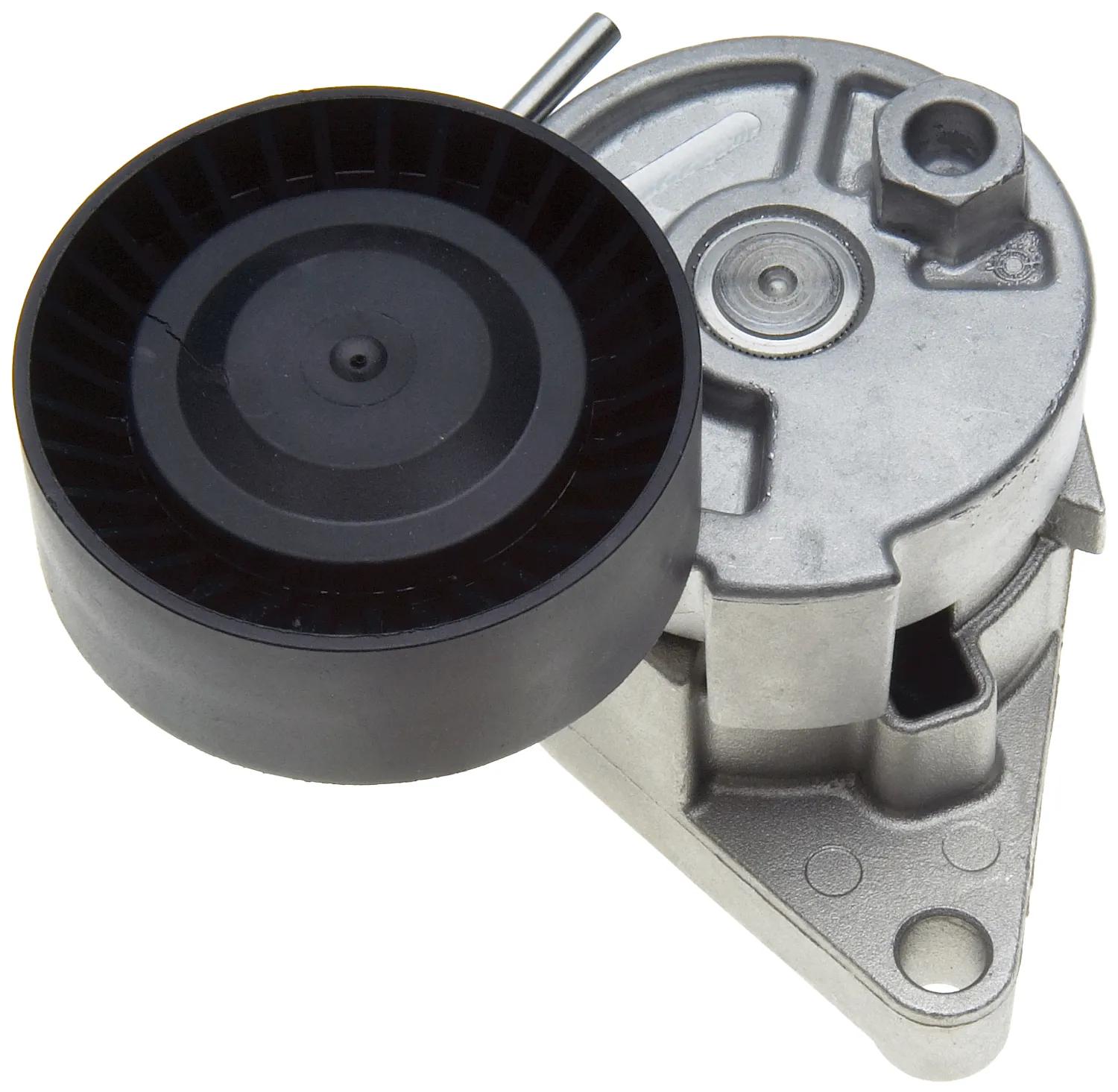

Belt Tensioner Assy, Holes: 2
#GAT38224
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1 to 1-1/8 in (2.54 to 2.87 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 2 |
| # of Pulleys | 1 |
| Outside Diameter | 2-49/64 in (7.04 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-1/64 in (2.59 cm) |
Interchanges & Equivalent parts:
| 11281433571 |
| 305343 |
| 49311 |
| 89343 |
| 89343FN |
| 999058 |
| 999058A |
| 38224 |
| 38224M |
| URO000478 |
| 780234 |
| ALT01311 |
