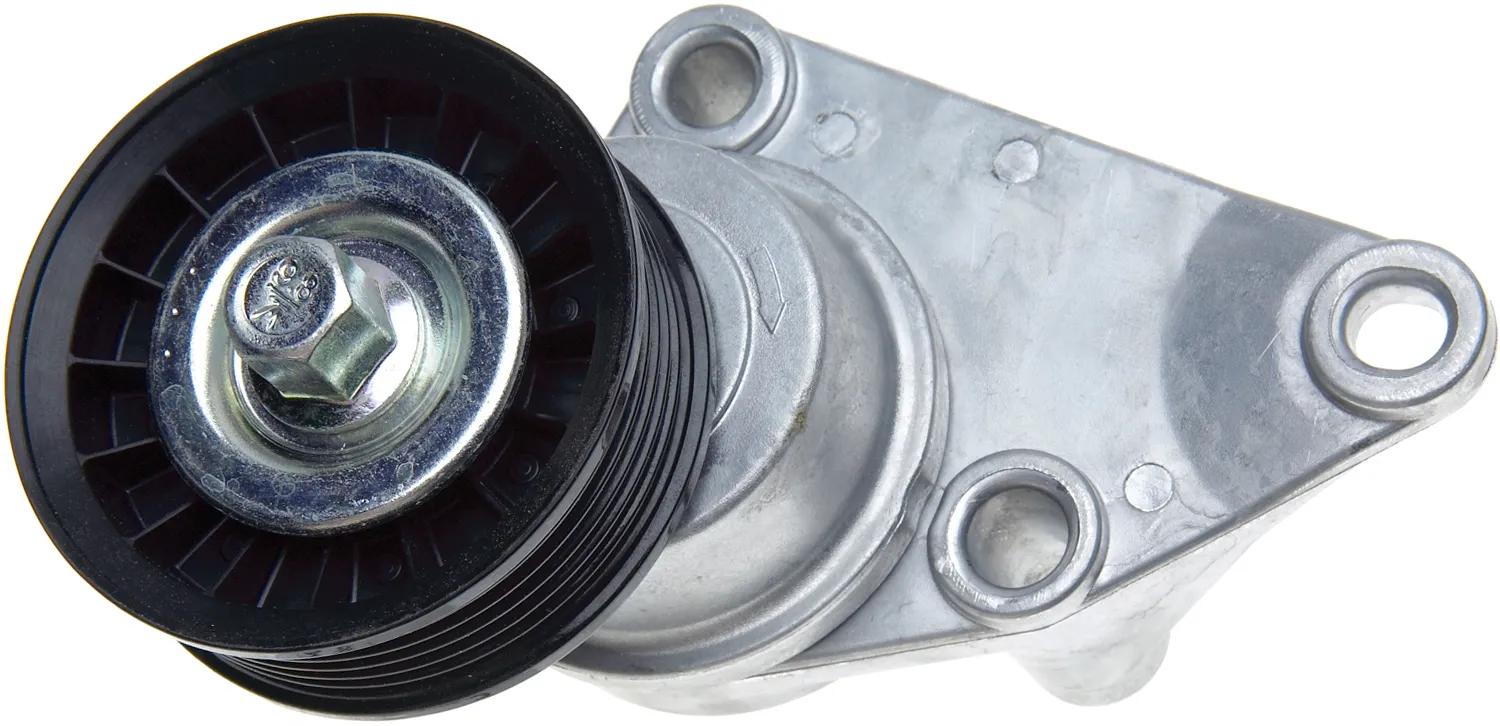

Belt Tensioner Assy, Holes: 3, Grooves: 6
#GAT38158
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 3 |
| # of Grooves | 6 |
| # of Pulleys | 1 |
| Outside Diameter | 2-63/64 in (7.57 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 63/64 in (2.49 cm) |
Interchanges & Equivalent parts:
| 419112 |
| 305253 |
| 49275 |
| 45843 |
| 38158 |
| 89253 |
| 89253FN |
| 999033 |
| 999033A |
| GT38158 |
| 12580162 |
| 12554027 |
| 35158 |
| 419-112 |
| SMAMP40253 |
| SK89253 |
| ALT04401 |
| FG305253 |
| 11030011 |
| 780337 |
| 5843 |
