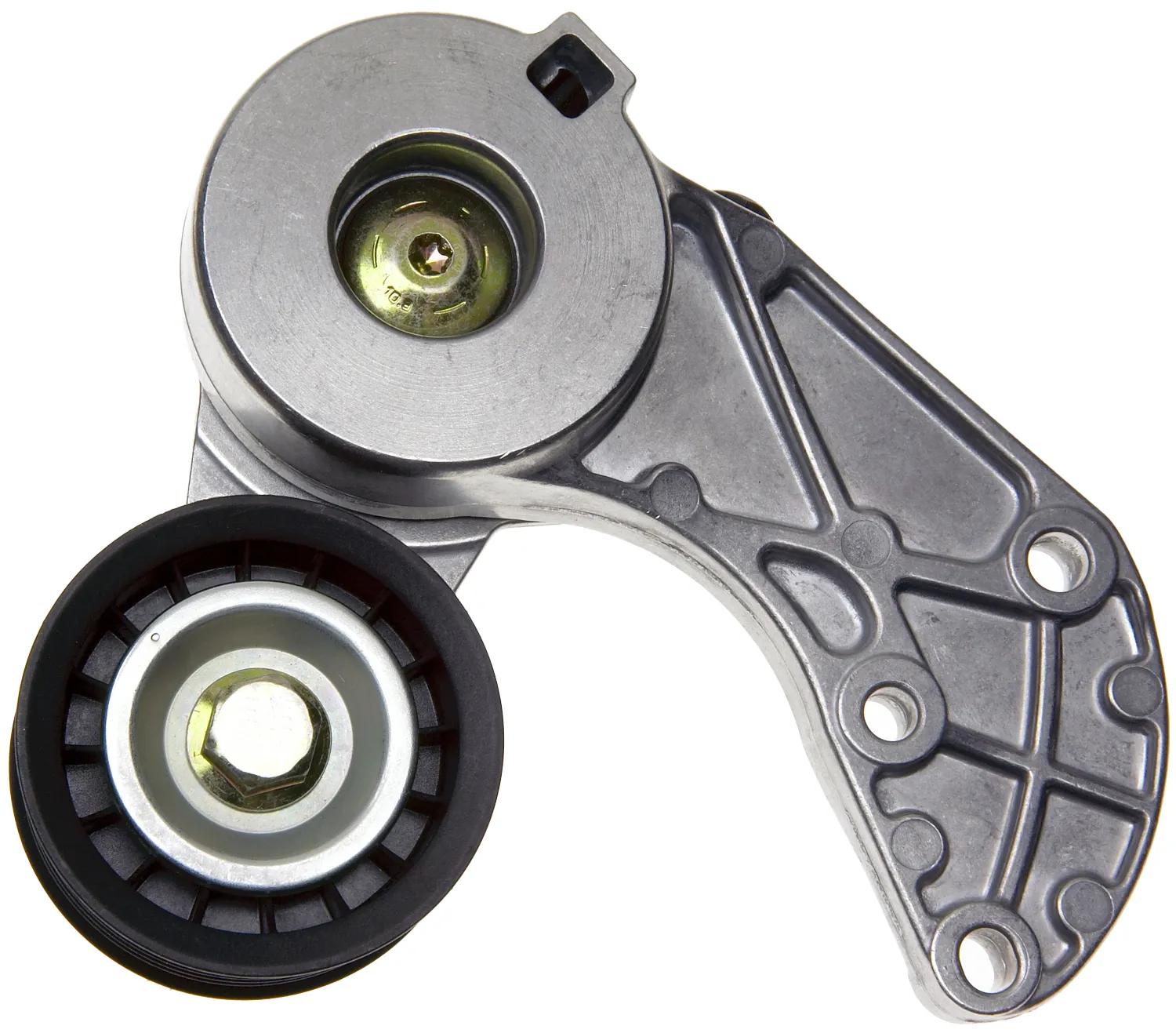

Belt Tensioner Assy, Holes: 3, Grooves: 7
#GAT38317
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/8 to 1-1/4 in (2.87 to 3.18 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 3 |
| # of Grooves | 7 |
| # of Pulleys | 1 |
| Outside Diameter | 2-49/64 in (7.04 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-9/64 in (2.9 cm) |
Interchanges & Equivalent parts:
| 022145299E |
| 49372 |
| 95510229900 |
| 89623 |
| 999164 |
| 999164A |
| GTA1055 |
| 38317 |
| 305623 |
| 4076 |
| 95510236101 |
| URO010138 |
