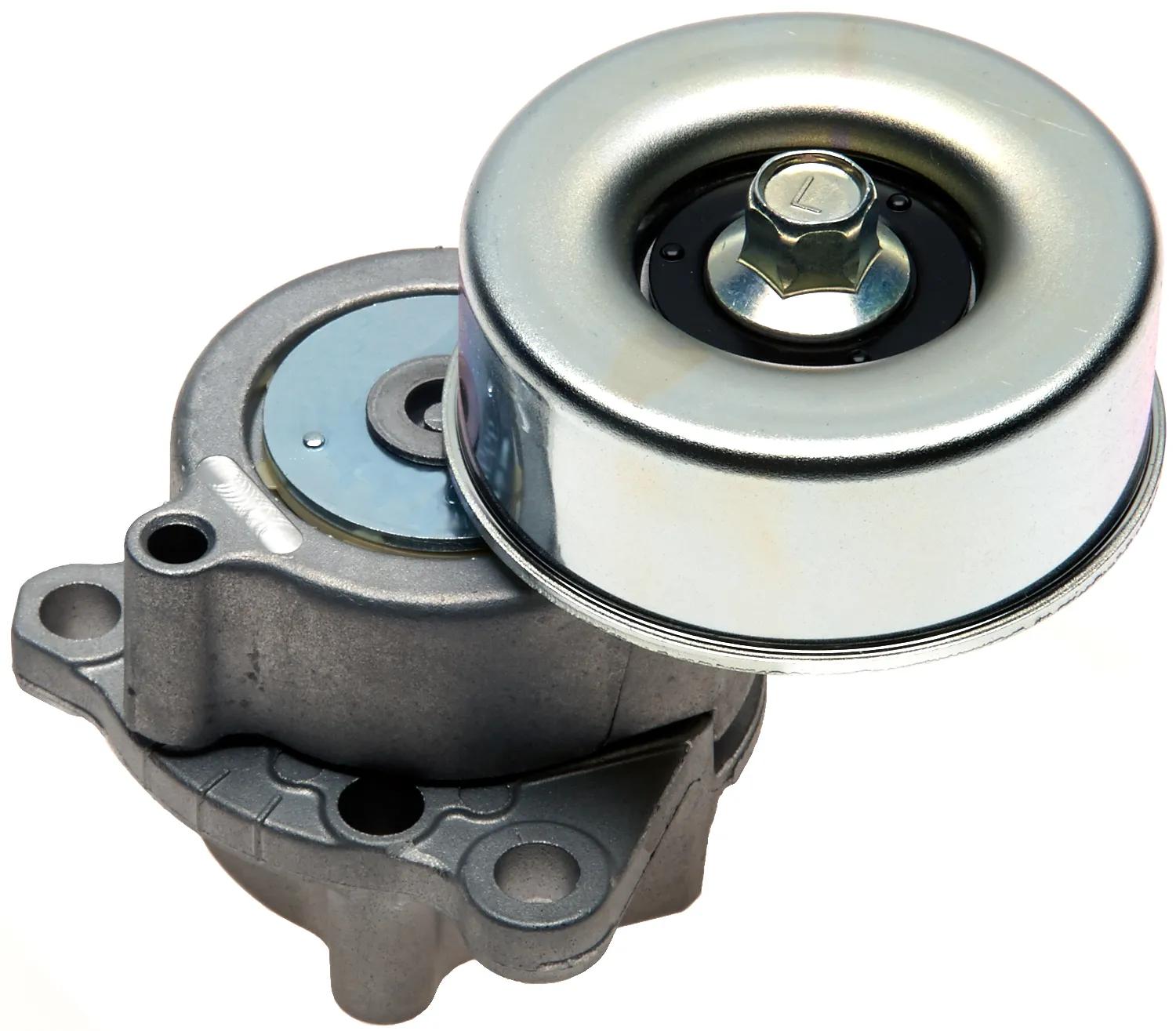

Belt Tensioner Assy, Holes: 3
#GAT39069
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/8 to 1-1/4 in (2.87 to 3.18 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Steel |
| Number Of Mounting Holes | 3 |
| # of Pulleys | 1 |
| Outside Diameter | 3-5/32 in (8.03 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-7/32 in (3.1 cm) |
Interchanges & Equivalent parts:
| 49426 |
| 11955AR000 |
| 11955AR00A |
| 11955AR00B |
| 11955AR00C |
| 999259 |
| 999259A |
| 39069 |
| 4066 |
