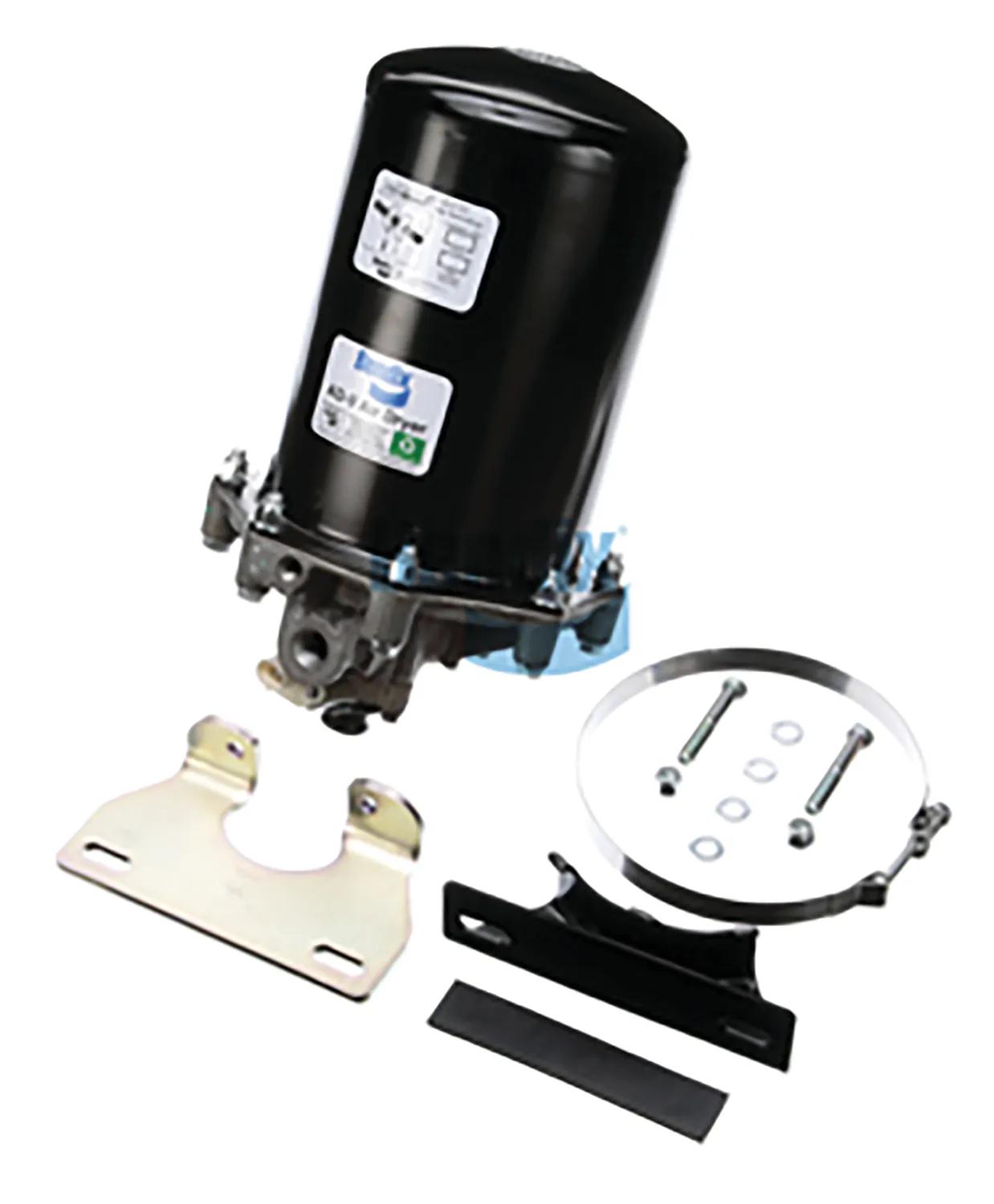

Bendix AD-9 Air Dryer, 2-Way, 12 V, 1/2-14 NPT Supply & Delivery, 1/4-18 NPT Control

#BENK046157

Product Overview

The Bendix AD-9 air brake dryer ensures only clean, dry air enters your air brake system components. It eliminates the need for daily manual draining of reservoirs, maintaining optimal air brake system performance.Air Dryer, 2-Way, 5/8-11 UNC-2A Cartridge, 1/4-18 NPT Control Port, 1/2-14 NPT Delivery Port, -40 deg C Operating Temperature, 1/2-14 NPT Supply Port, 200 psi Valve Opening Pressure, 12 V, 75 W Wattage

Features & Benefits

Designed to collect and remove moisture as well as solid, liquid, and vapor contaminants from the air before entering the air brake system

Consists of a screw-in type desiccant cartridge and a die-cast aluminum end cover, which contains a safety valve, check valve assembly, and a purge valve housing assembly

Has three female pipe threaded air connections

Specifications

Model	AD-9
New or Remanufactured	New
VMRS Code	013-010-252
Cartridge Thread	5/8-11 UNC-2A
Control Port	1/4-18 NPT
Delivery Port	1/2-14 NPT
Operating Temperature	-40 deg C
Supply Port	1/2-14 NPT
Type	2-Way
Valve Opening Pressure	200 psi
Voltage Rating	12 V
Wattage	75 W
Product Category	Air Dryer
Weight	28.65 lb

Interchanges & Equivalent parts:

K046157
