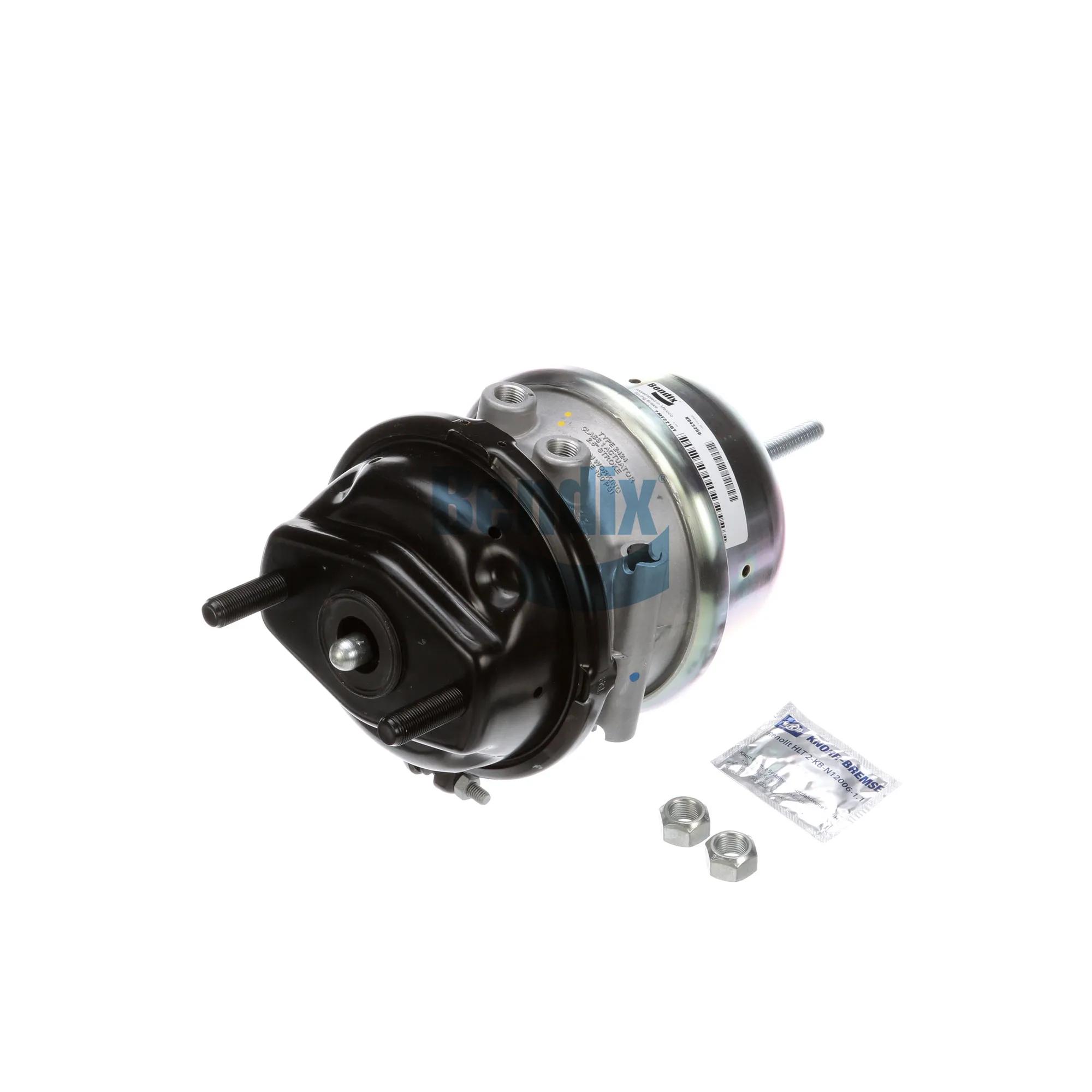

Bendix Brake Chamber T24/24, Spring Brake Disc, 400 mm Length x 200 mm Width x 200 mm Height
#BENK043260
Product Overview
Spring Brake Disc, 90 deg Clamp Angle, -40 deg C Operating Temperature, 3/8-18 NPTF Parking Port, 270 deg Port Angle, 15 mm Push Rod Length, 3/8-18 NPTF Service Port, T24/24, 2.50 in Stroke, 4.75 in Stud Spacing, M16 x 1.5-6G Stud Thread, 200 mm Height, 400 mm Length, 200 mm Width
Specifications
| Model | T24/24 |
| Size | T24/24 |
| Stroke | 2.50 in |
| VMRS Code | 013-013-048 |
| Weight | 19.84 lb |
| Height | 200 mm |
| Length | 400 mm |
| Operating Temperature | -40 deg C |
| Stud Thread Size | M16 x 1.5-6G |
| Width | 200 mm |
| Product Category | Spring Brake Disc |
Interchanges & Equivalent parts:
| 745-K043260 |
| K043260BXW |
