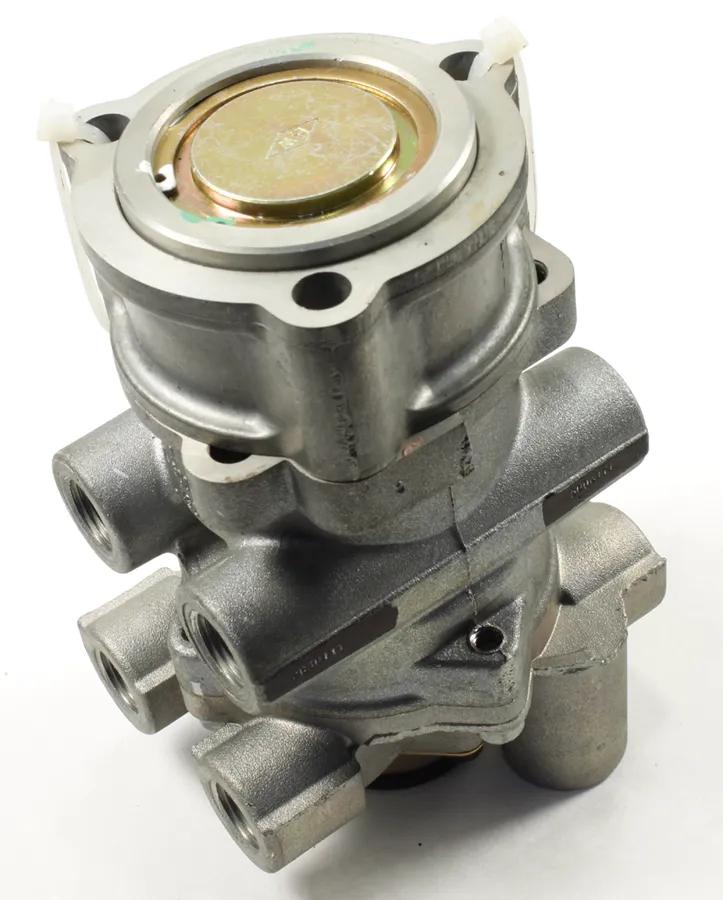

Bendix E10P Foot Brake Valve, Dual Circuit, NPT 3/8-18 Inlet and Outlet Ports
#BEN800632
Product Overview
Foot Brake Valve, NPT Inlet, NPT Outlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Inlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Outlet, FMVSS 121 Regulatory Compliance, -40 °F Temperature Rating, 151.6 mm Height, 101.6 mm Length, 91.4 mm Width
Features & Benefits
- Replaces E-15 Foot Valve #'s 065315 & 800318, Replaces E-15R Foot Valve # 800319.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Meets VMRS 13-010-051 Requirements.
- Bendix Has Been a Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Application | Foot Brake Valve |
| Contents | (1) Foot Valve Per Box |
| Length | 101.6 mm |
| New or Remanufactured | New |
| Outlet Size | 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 |
| Type | Dual Circuit |
| VMRS Code | 13-010-051 |
| Weight | 3.17 lbs |
| Height | 151.6 mm |
| Inlet Size | 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 |
| Inlet Type | NPT |
| Outlet Type | NPT |
| Regulatory Compliance | FMVSS 121 |
| Series | E-10P |
| Temperature Rating | -40 °F |
| Width | 91.4 mm |
| Product Category | Foot Brake Valve |
Interchanges & Equivalent parts:
| 641925 |
| H800632 |
| 64-1925 |
| 745-800632 |
| BAN800632 |
| BEN800632 |
| BW 800632 |
| BW 800632 |
| BX800632 |
| PRI-800632 |
| S-E630 |
| TWDBEN800632 |
| 065315 |
| 800318 |
| 800632BXW |
| ZAC800632 |
