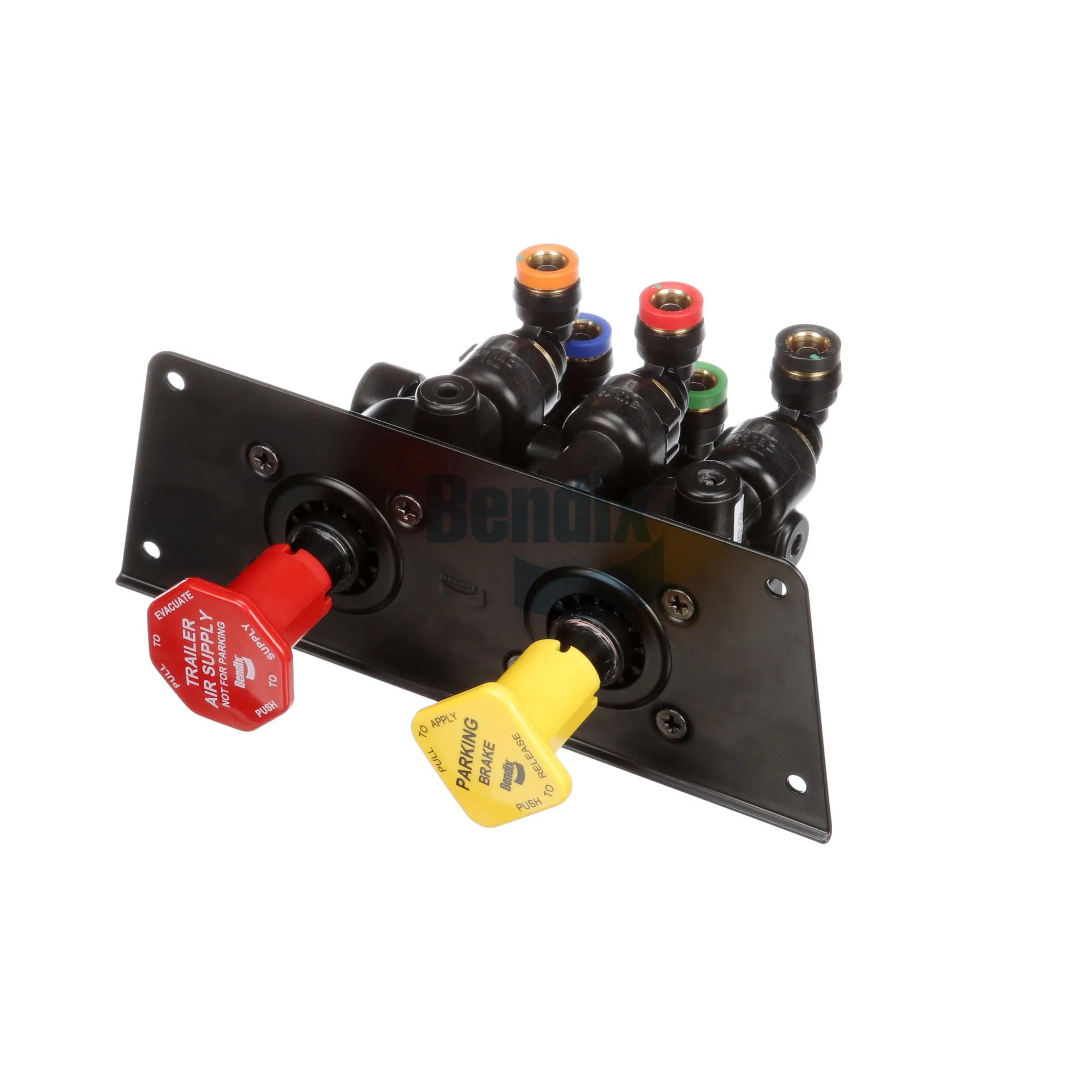

Bendix MV-3 Control Module Valve with 3/8 in PTC Elbow Ports
#BEN801631
Product Overview
Dash Valve, 3/8 in (90 deg Extended Elbow/Composite/Green Cap) x 3/8 in (90 deg Elbow/Composite/Red Cap) Inlet, 3/8 in PTC (90 deg Elbow/Composite/Orange Cap) x 3/8 in PTC (90 deg Elbow/Composite/Black Cap) Outlet, -40 °F Temperature Rating, 79 mm Height, 169.2 mm Length, 209.3 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Repair Kits Also Available to Alleviate Changing the Entire Manifold Valve Assembly.
- Bendix Has Been A Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Bolt Hole Diameter | 13/64 in |
| Exhaust Port Size | 3/8 PTC Elbow Tall |
| Height | 79 mm |
| Length | 169.2 mm |
| Model | MV-3 |
| New or Remanufactured | New |
| Package Contents | (1) Manifold Valve Per Box |
| Primary Supply Port (in.) | 3/8 PTC Elbow Tall |
| Secondary Supply Port | 3/8 PTC Elbow Short |
| Tractor Trip Pressure | 20-40 psi |
| Trailer Override Pressure | 20-30 psi |
| Trailer Trip Pressure | 20-45 psi |
| VMRS Code | 013-010-050 |
| Weight | 2.25 lbs (1.02 kg) |
| Width | 209.3 mm |
| Fits Models | MV-3 |
| Inlet Size | 3/8 in (90 deg Extended Elbow/Composite/Green Cap) x 3/8 in (90 deg Elbow/Composite/Red Cap) |
| Outlet Size | 3/8 in PTC (90 deg Elbow/Composite/Orange Cap) x 3/8 in PTC (90 deg Elbow/Composite/Black Cap) |
| Temperature Rating | -40 °F |
| Type | Control Module Valve |
| Product Category | Dash Valve |
Interchanges & Equivalent parts:
| 801631BXW |
| BAN801631 |
| BW 801631 |
| BW 5013293 |
| BW 801631 |
| BX801631 |
| S-21729 |
| ZAC801631 |
| 5012393 |
| BEN801631 |
| 745-801631 |
| TWDBEN801631 |
