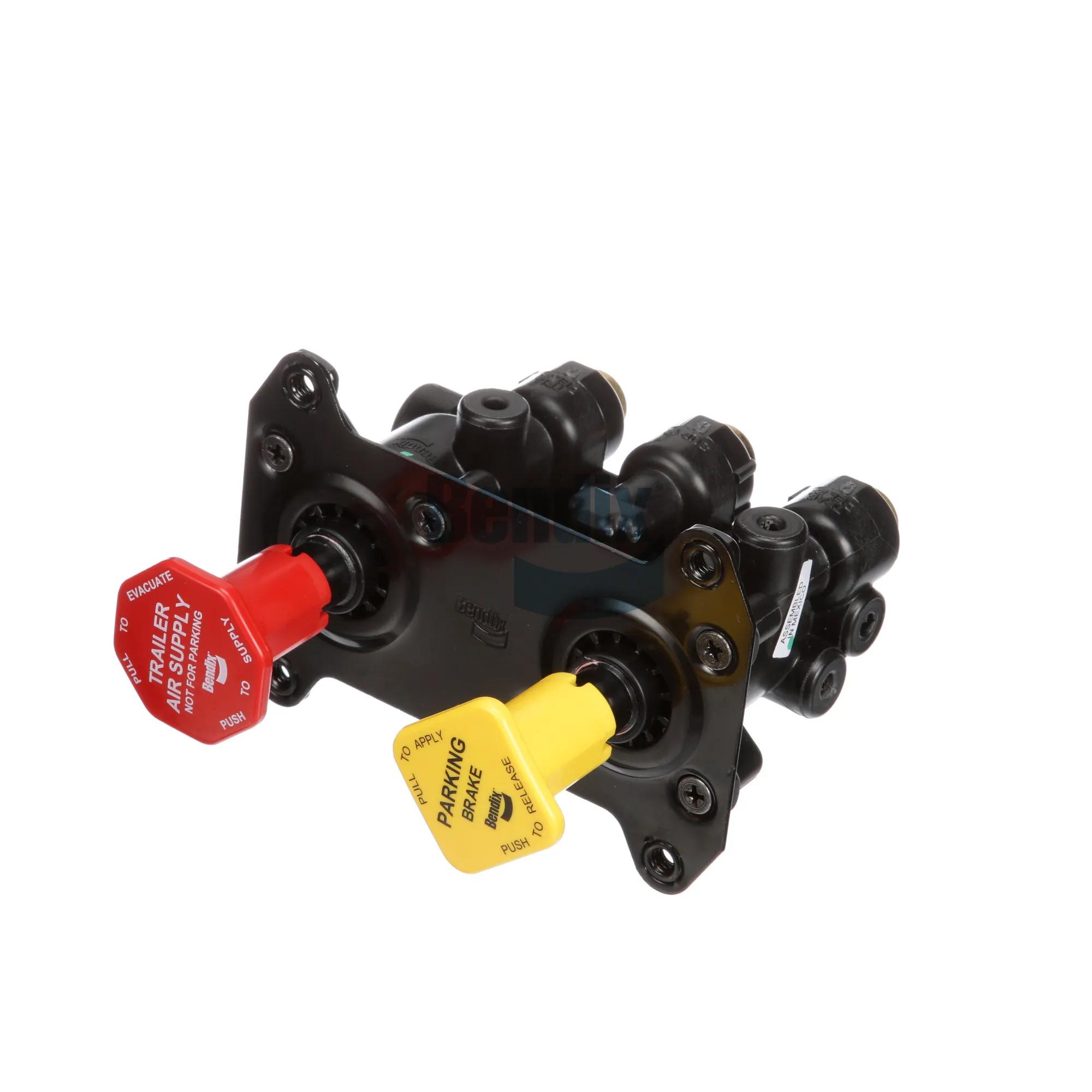

Bendix MV-3 Dash Valve with 3/8 in Push-To-Connect Inlet and Outlet
#BEN800259
Product Overview
Dash Valve, 3/8 in PTC x 3/8 in PTC Inlet, 3/8 in PTC x 3/8 in PTC Outlet, -40 °F Temperature Rating, 91.9 mm Height, 130.8 mm Length, 136.2 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Repair Kits Also Available to Alleviate Changing the Entire Manifold Valve Assembly.
- Bendix Has Been A Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Auxiliary Port Size | 3/8 in PTC |
| Distance Between Mounting Holes | 4.21 in. |
| Exhaust Port Size | 3/8 in PTC |
| Height | 91.9 mm |
| Length | 130.8 mm |
| Mounting Hole Size | 1/4-20 |
| Mounting Hole Sizes | (4) 1/4-20 in. Threaded |
| Mounting Orientation | Horizontal |
| New or Remanufactured | New |
| Package Contents | (1) Manifold Valve Per Box |
| Repair Kit # | BEN107216 or BEN5002741 (Maintenance Kit), BEN107217 or BEN5002742 (Shuttle Kit) |
| Tractor Delivery Port Size | 3/8 in PTC |
| Trailer Delivery Port Size | 3/8 in PTC |
| VMRS Code | 013-010-050 |
| Weight | 1.65 lbs (0.75 kg) |
| Width | 136.2 mm |
| Body Material | Plastic |
| Connection Type | Push-To-Connect |
| Fits Models | MV-3 |
| Inlet Size | 3/8 in PTC x 3/8 in PTC |
| Outlet Size | 3/8 in PTC x 3/8 in PTC |
| Port Size | 3/8 in PTC |
| Temperature Rating | -40 °F |
| Product Category | Dash Valve |
Interchanges & Equivalent parts:
| H800259X |
| 2039879C92 |
| 3092736 |
| 800259BXW |
| BAN800259 |
| BW 800259 |
| BW 800259 |
| BX800259 |
| RKN20623 |
| S-16928 |
| ZAC800259 |
| 401828 |
| 5002693 |
| 5002716 |
| 800036 |
| BEN800259 |
| 745-800259 |
| 800259RT |
| TWDBEN800259 |
