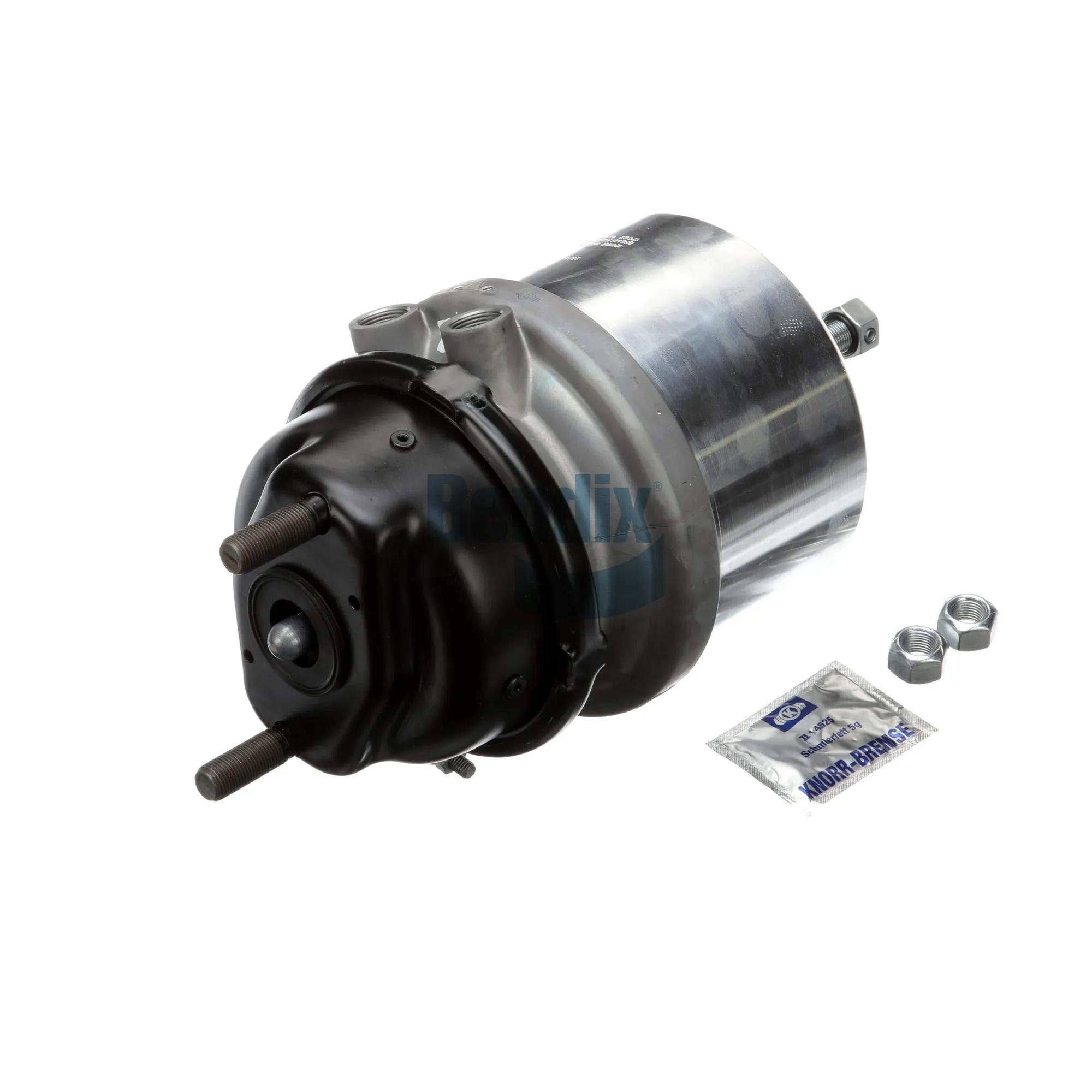

Bendix Spring Brake Disc T20/24
#BENK047584
Product Overview
The Bendix Spring Brake Disc T20/24 is designed for reliable performance in heavy-duty air brake systems. Featuring precise dimensions and robust construction, it ensures optimal braking efficiency and durability under various operating conditions.Spring Brake Disc, 180 deg Clamp Angle, -40 deg C Operating Temperature, M22 x 1.5-6H Parking Port, 330 deg Port Angle, 15 mm Push Rod Length, 2 Open/4 Plugged Service Chamber Vent Holes, M22 x 1.5-6H Service Port, T20/24, 2.50 in Stroke, 4.75 in Stud Spacing, M16 x 1.5-6G Stud Thread
Features & Benefits
- Durable spring brake disc designed for T20/24 size applications
- High-quality construction for long-lasting performance
- Compatible with standard air chamber accessories
- Optimized clamp and port angles for efficient operation
Specifications
| Size | T20/24 |
| Stroke | 2.50 in |
| Type | Spring Brake Disc |
| VMRS Code | 013-013-048 |
| Weight | 15.01 lb |
| Operating Temperature | -40 °C |
| Stud Thread Size | M16 x 1.5-6G |
| Product Category | Spring Brake Disc |
Interchanges & Equivalent parts:
| K090594 |
