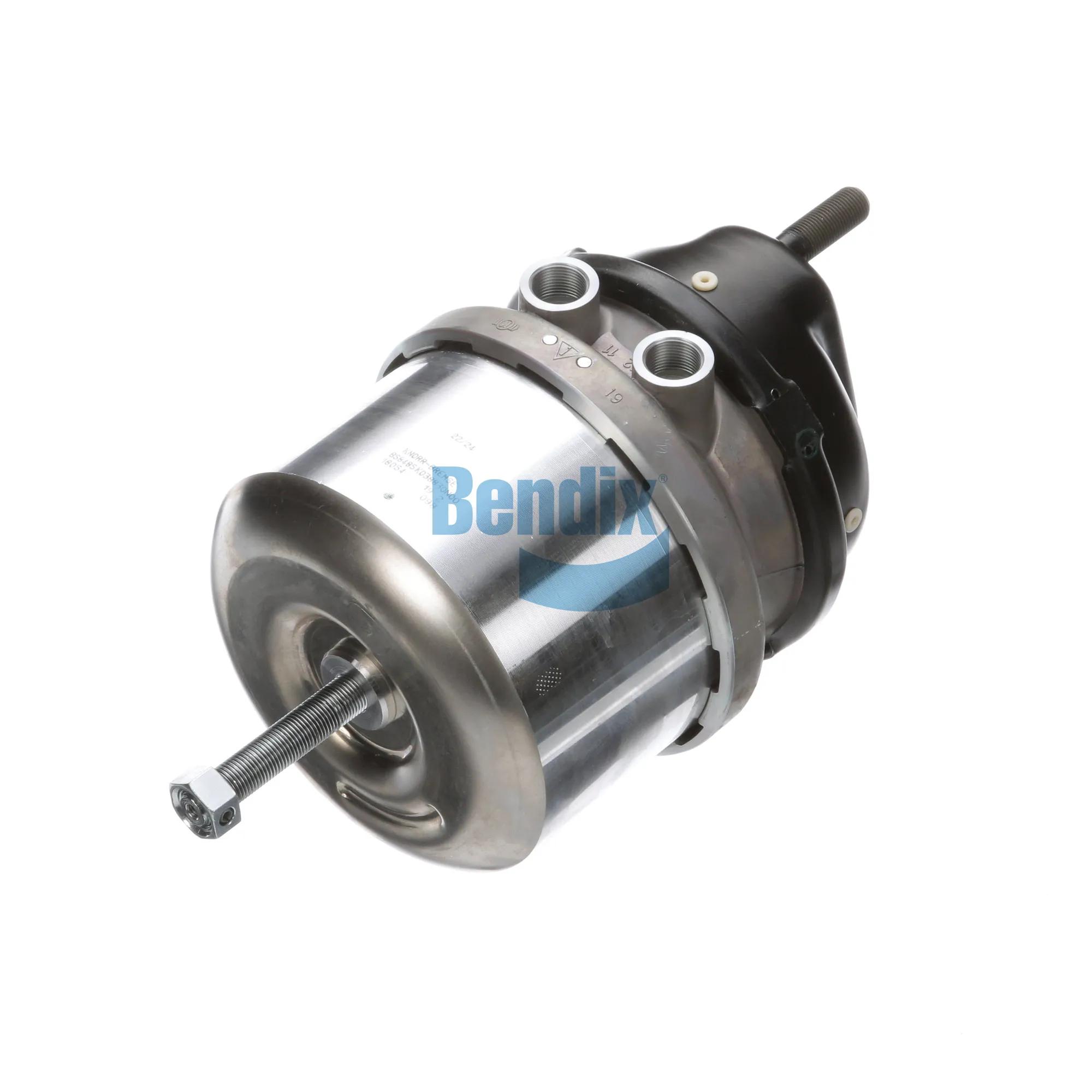

Bendix Spring Brake Disc T22/24

#BENK068622

Product Overview

Spring Brake Disc, 135 deg Clamp Angle, -40 deg C Operating Temperature, M22 x 1.5-6H Parking Port, 0 deg Port Angle, 15 mm Push Rod Length, 2 Open/4 Plugged Service Chamber Vent Holes, M22 x 1.5-6H Service Port, T22/24, 2.25 in Stroke, 4.75 in Stud Spacing, M16 x 1.5-6G Stud Thread

Specifications

Material	Steel
Size	T22/24
Stroke	2.25 in
VMRS Code	013-013-048
Weight	16.8 lb
New or Remanufactured	New
Operating Temperature	-40 deg C
Stud Thread Size	M16 x 1.5-6G
Product Category	Spring Brake Disc

Interchanges & Equivalent parts:

745-K068622

BW K068622

K068622BXW
