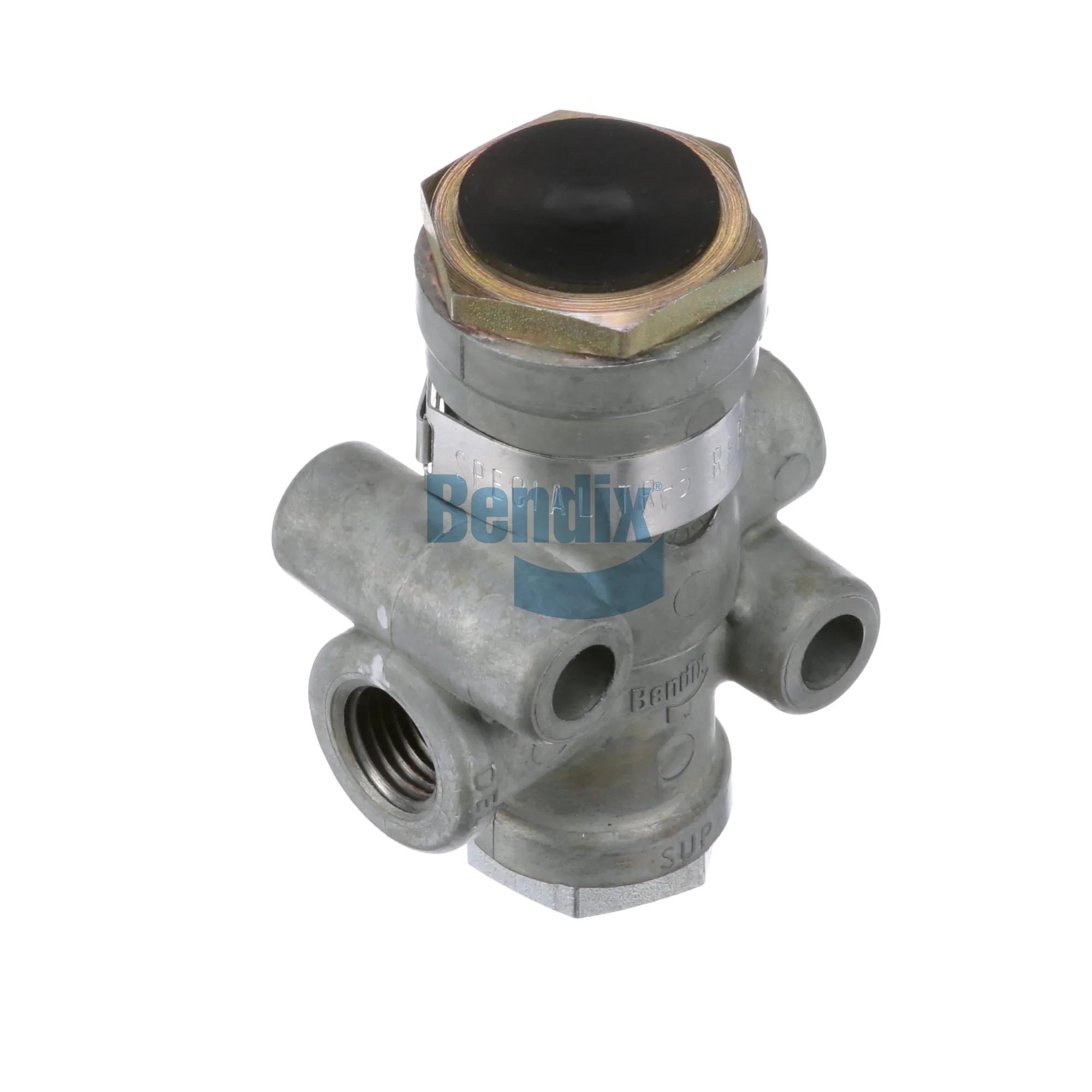

Bendix TR-3 Air Inversion Valve, 1/4 in. NPT Inlet, 25 PSI Inlet / 40 PSI Exhaust Rating
#BEN101450N
Product Overview
Inversion Valve, NPT Inlet, 1/4-18 Inlet, -40 °F Temperature Rating, 75.4 mm Height, 49 mm Length, 35.1 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Also Available In Remanufactured Exchange.
- Manufactured to Meet or Exceed O.E.M. Specifcations in Function, Form & Fit.
Specifications
| Additional Notes | With Control & Supply Pressure, Inlet Opens At "A" P.S.I., Descending Pressure & Exhaust Opens At "b" P.S.I. Ascending Pressure. Special Duty (Bus Applications). |
| Air Valve Control Port Size | 1/8 in. NPT |
| Exhaust Port Size | 1-1/2 in |
| Height | 75.4 mm |
| Length | 49 mm |
| Mounting Hole Sizes | 9/32 in. |
| New or Remanufactured | New |
| # of Mounting Holes | 2 |
| Package Contents | (1) Inversion Valve Per Box |
| Pressure Rating | 25 PSI (Inlet) / 40 PSI (Exhaust) |
| Temperature Rating | -40 °F |
| Type | Air Inversion Valve |
| VMRS Code | 013-010-363 |
| Weight | 0.55 lbs |
| Width | 35.1 mm |
| Inlet Size | 1/4 in. |
| Inlet Type | NPT |
| Outlet Size | 1/4 in. |
| Series | TR-3 |
| Product Category | Inversion Valve |
Interchanges & Equivalent parts:
| BEN101450 |
| 8096210 |
| 101450 |
| 101450BXW |
| 6977024 |
| BAN101450N |
| BW 101450N |
| BW 101450N |
| BX101450N |
| BEN101450N |
| 745-101450N |
| BND101450N |
| BX101450 |
| TWDBEN101450N |
| K123677 |
