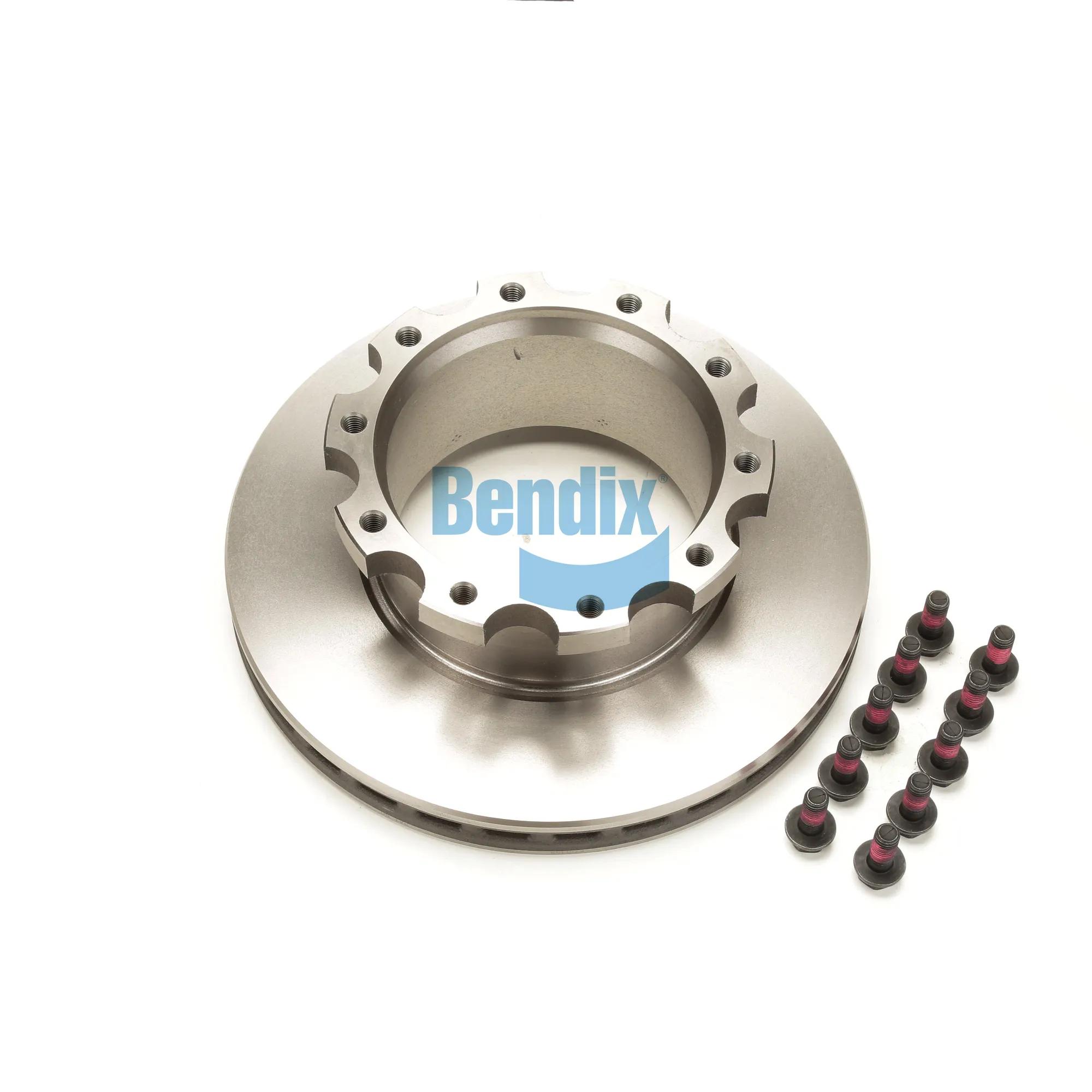

Bendix U-Shaped Vented Brake Rotor, 16-15/16 in Dia, 1-49/64 in Thickness, 10 Bolt Holes
#BENK038574
Specifications
| ABS | Yes |
| Application | ADB22X/ADB225 |
| Bolt Circle Diameter | 9-13/16 in |
| Brake Surface Width | 1-49/64 in |
| Diameter | 16-15/16 in |
| Discard Thickness (in.) | 1-1/2 in |
| Finish | Directional |
| Flange Thickness | 29/32 in |
| Hardware Included | No |
| Height | 5-29/32 in |
| Hole Size | M16 x 2 |
| Length | 19-1/2 in |
| Material | Iron |
| Model | ADB22X/ADB225 |
| Overall Depth | 5-29/32 in |
| Pilot Diameter | 8-21/32 in |
| Position | Front |
| Type | U-Shaped |
| Vented or Non-Vented | Vented |
| VMRS Code | 013-017-001 |
| Weight | 86 lb |
| Brake Surface Diameter | 16-15/16 in |
| Number of Holes | 10 |
| Product Category | Rotor |
Interchanges & Equivalent parts:
| M44D76617 |
| S-32193 |
| S-23223 |
| 802082 |
| 745-K038574 |
| 76AR617G |
| ADR1030 |
| ADR180406 |
| BNDK038574 |
| PL76617 |
| SSR920 |
| 153125802 |
| S32193 |
| BW K038574 |
