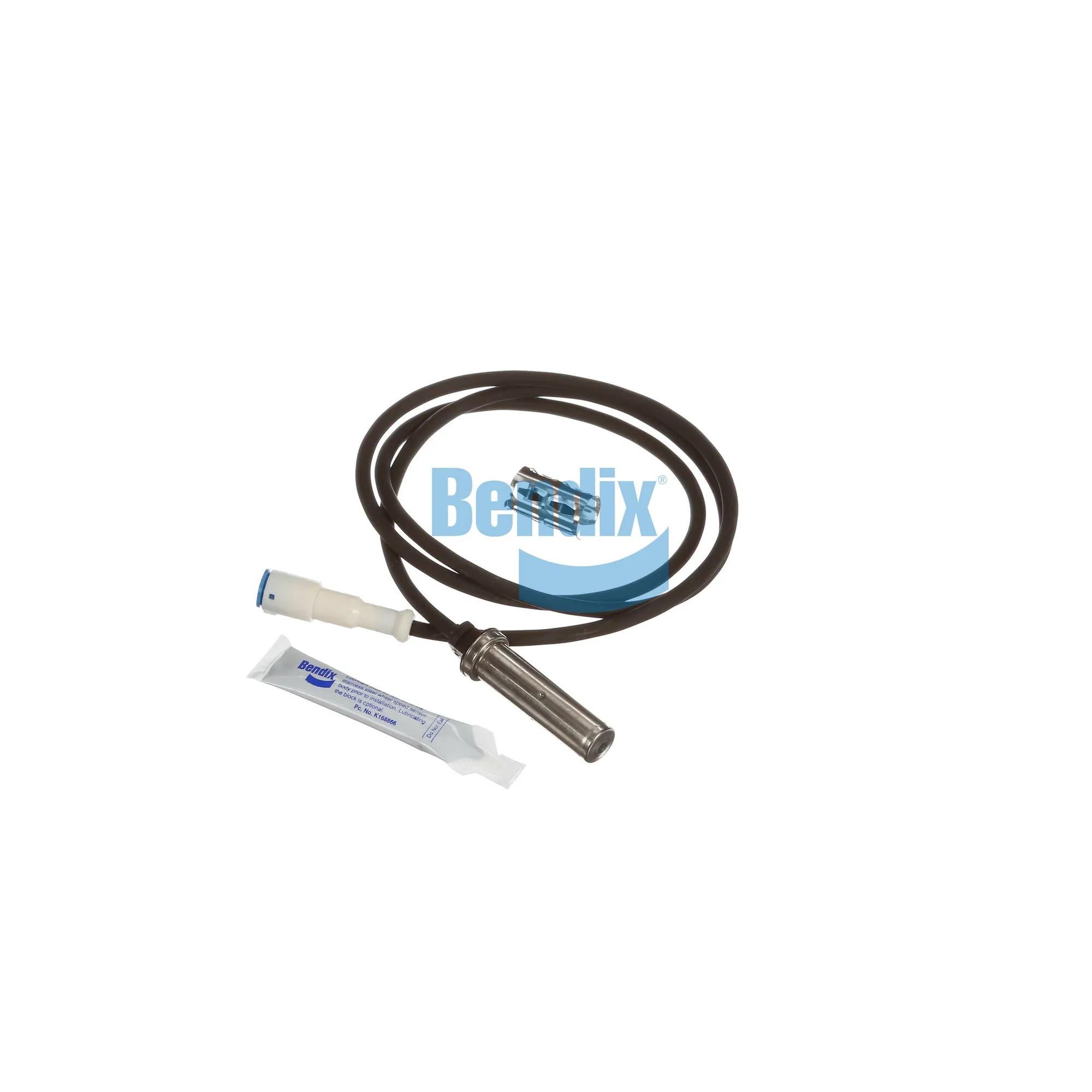

Bendix Wheel Speed Sensor with DIN 2-Pin Barrel Sealed Connector, IPX9K Rated
#BENK221578
Product Overview
This Bendix wheel speed sensor features a durable DIN 2-pin barrel sealed connector (socket) designed for reliable ABS system performance. It offers an IPX9K rating for high-pressure, high-temperature washdown protection and operates effectively in temperatures as low as -40 °F. The sensor includes a cable length of 1219 mm and compact dimensions for easy installation.Wheel Speed Sensor, DIN 2-Pin Barrel Sealed Connector (Socket) Connector Type, 1219 mm Cable Length, IPX9K IP Rating, -40 °F Temperature Rating, 6.2 mm Height, 1351.2 mm Length, 6.2 mm Width
Features & Benefits
- Durable DIN 2-pin barrel sealed connector (socket)
- High IPX9K rating for superior washdown protection
- Operates in temperatures down to -40 °F
- Includes 1219 mm cable length for flexible installation
Specifications
| Connector Type | DIN 2-Pin Barrel Sealed Connector (Socket) |
| Height | 6.2 mm |
| Length | 1351.2 mm |
| VMRS Code | 013-011-002 |
| Width | 6.2 mm |
| Cable Length | 1219 mm |
| IP Rating | IPX9K |
| Temperature Rating | -40 °F |
| Product Category | Wheel Speed Sensor |
| Weight | 0.44 lb |
