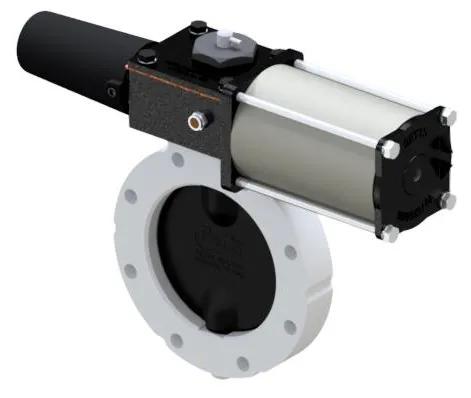

Betts 4 in Wet-R-Dri Butterfly Valve, TTMA Flange Inlet & Outlet, Pneumatic and Hydraulic, Aluminum
Product Overview
The Betts Wet-R-Dri valve is a lightweight, compact quarter-turn in-line stop valve designed for liquid, gaseous, or dry products. It features an actuator that opens and closes the valve and provides a clear visual indicator of the valve disc orientation. The valve body is available in aluminum, cast iron, or stainless steel with optional coatings for enhanced chemical resistance and extended service life. The actuator is made of e-coated aluminum with a robust fiberglass cylinder. Disc seals and shaft O-rings come in various materials to optimize chemical resistance and service temperature range. The bolt pattern matches TTMA piping flange dimensions.Wet-R-Dri Butterfly Valve, TTMA Flange Inlet, TTMA Flange Outlet, Pneumatic and Hydraulic, Aluminum, FKM Seal, 4 in Inlet, 75 psi, 4 in Outlet, Standards: ISO 9001:2015, 240 °F, 17 in L
Features & Benefits
- Air cylinder max pressure = 150 psig (10 bar)
- Hydraulic cylinder max pressure = 3,000 psig (207 bar)
Specifications
| Material | Aluminum |
| Application | Liquid, gaseous, or dry products |
| Flow Direction | In-line |
| Inlet Size | 4 in |
| Inlet Type | TTMA Flange |
| Length | 17 in |
| Mounting Style | Flanged |
| Operating Pressure | 75 psi |
| Outlet Size | 4 in |
| Outlet Type | TTMA Flange |
| Seal Material | FKM |
| Standards | ISO 9001:2015 |
| Temperature Range | 240 °F |
| Valve Type | Pneumatic and Hydraulic |
| Product Category | Wet-R-Dri Butterfly Valve |
| Weight | 9 lb |
