Betts Industries Clearance/Marker Lamp, PBT, Gray Housing, Red Lens, 21.3 mA at 12 V, 10.7 mA at 24 V, 12/24 V
Product Overview

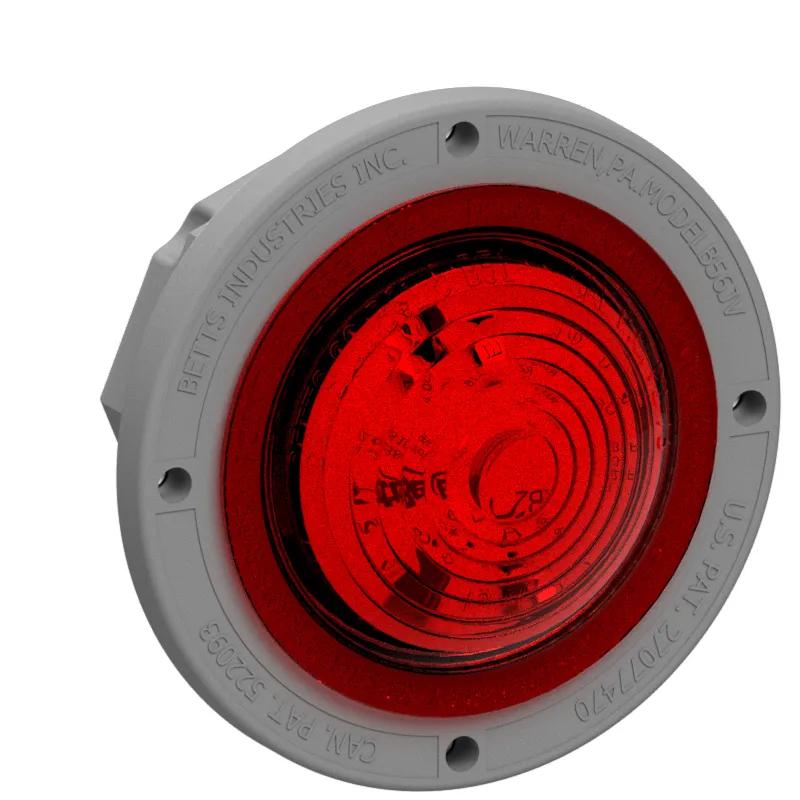

The 56 Series Assemblies include a Lite Ranger™ LED Lamp insert mated to a 56 Series housing. The housing is made from reinforced PBT engineered thermoplastic for high strength and impact resistance and offers unsurpassed protection to the lamp assembly. The exclusive Snap Seal™ O-ring locks out moisture and corrosion while providing convenient access to the inside of the housing. The spacious 56 Series housing, which also functions as a junction box for the wiring and plug connections, requires a 3” diameter mounting hole with four flange screws. A gray housing is standard but black is also available. The Lite Ranger™ LED Lamp insert is a robust, fully sealed unit made from impact resistant polycarbonate plastic.Clearance/Marker Lamp, PBT, Gray Housing, Red Lens, 21.3 mA at 12 V, 10.7 mA at 24 V, Standards: FMVSS 108, 12/24 V, Warranty: 5 Years
Features & Benefits
- Covered by Betts’ 5 yr limited warranty
- Designed to meet all FMVSS 108 requirements (49CFR§571.108)
- Gray PBT housing standard (black is available)
- Pigtail with multiple connector options or blunt cut cable connections
- Red shallow lens with optics, single LED, 12 V/24 V, 56-Series Gray Housing
- Requires a 3 in mounting hole with four flange screws or rivets
- Reverse polarity protected
- SAE DOT lighting codes: P2PC
- Supports system voltages of 12 VDC and 24 VDC
Specifications
| Housing Color | Gray |
| Lens Color | Red |
| Material | PBT |
| Standards | FMVSS 108 |
| Voltage Rating | 12/24 V |
| Warranty | 5 Years |
| Current Rating | 21.3 mA at 12 V, 10.7 mA at 24 V |
| Manufacturer Part Number | 60MRSG112004006 |
| Product Category | Clearance/Marker Lamp |
