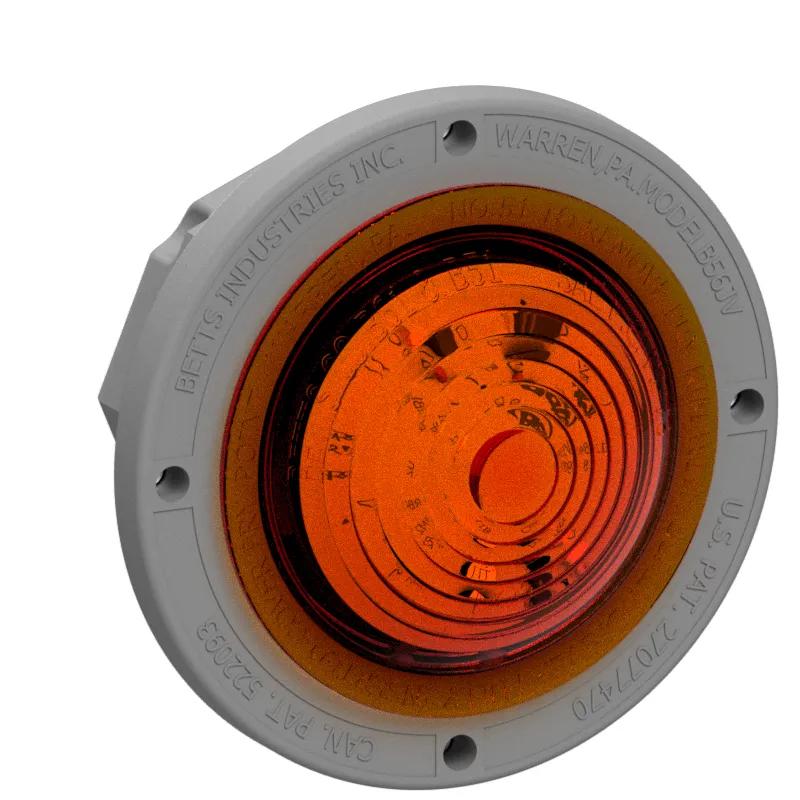

Betts Industries Lamp, Special Purpose, LED Bulb, Amber Lens, 24 mA at 12 V, 12 mA at 24 V
Product Overview
The 56 Series Assemblies include a Lite Ranger™ LED Lamp insert mated to a 56 Series housing. The housing is made from reinforced PBT engineered thermoplastic for high strength and impact resistance and offers unsurpassed protection to the lamp assembly. The exclusive Snap Seal™ O-ring locks out moisture and corrosion while providing convenient access to the inside of the housing. The spacious 56 Series housing, which also functions as a junction box for the wiring and plug connections, requires a 3” diameter mounting hole with four flange screws. A gray housing is standard but black is also available. The Lite Ranger™ LED Lamp insert is a robust, fully sealed unit made from impact resistant polycarbonate plastic.Lamp, Special Purpose, LED Bulb, Amber Lens, 24 mA at 12 V, 12 mA at 24 V
Features & Benefits
- Amber shallow lens dual function with optics, single LED, 12 V/24 V, 56-Series Gray Housing
- Covered by Betts’ 5 yr limited warranty
- Designed to meet all FMVSS 108 requirements (49CFR§571.108)
- Gray PBT housing standard (black is available)
- Pigtail with multiple connector options or blunt cut cable connections
- Requires a 3 in mounting hole with four flange screws or rivets
- Reverse polarity protected
- SAE DOT lighting codes: P2PC
- Supports system voltages of 12 VDC and 24 VDC
Specifications
| Bulb Type | LED |
| Lens Color | Amber |
| Type | Special Purpose |
| Current Rating | 24 mA at 12 V, 12 mA at 24 V |
| Manufacturer Part Number | 60AASG112 |
| Product Category | Lamp |
