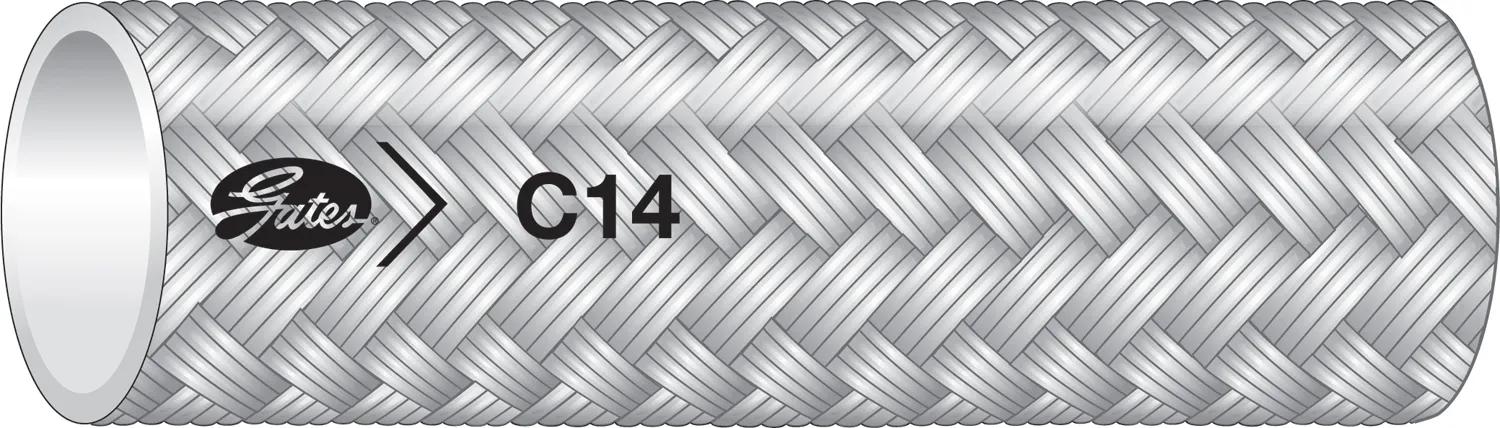

Braided Hoses, L: 250 ft, ID: 13/32 in
#GAT70808
Product Overview
Recommended for Air Compressor Discharge, Hot Oil & Fluids, Hot & Greasy Environments.
Features & Benefits
- In Those Cases Where Electrostatic Discharge Can Occur, Conductive PTFE Hose w/ a Conductive Tube (Gates C14CT) is Recommended.
- Electrostatic Discharge: Many Applications Involving PTFE Hose Do Not Require a Conductive Tube.
- But You Must Review the Potential for Electrostatic Discharge for Every Application & Be Aware That Static Electricity Can Be Hazardous.
- Temperature Range: Dynamic: -65 Deg F - +400 Deg F (-54 Deg C - +204 Deg C). Static: -65 Deg F - +450 Deg F (-54 Deg C - +232 Deg C). Recommended Couplings: C14 Couplings (Brass & Stainless Steel Available).
Specifications
| Color | Silver |
| Coupling Recommendation | C14 Couplings |
| Cover Material | Stainless Steel Braid |
| Cover Type | Braided |
| Dash Size | 8 |
| Industrial Description | 8C14XCTN |
| Inside Diameter 1 (in) | 13/32 in (1.04 cm) |
| Length | 250 ft (76.2 m) |
| Maximum Pressure | 1000 psi (68.95 bar) |
| Minimum Burst Pressure (PSI) | 4000 psi (275.79 bar) |
| Outside Diameter | 35/64 in (1.4 cm) |
| Product Type | C14 PTFE Hose - SAE 100R14 Type A - Non-Conductive |
| Radius | 5-19/64 in (13.46 cm) |
| Reinforcement | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Standard | SAE 100R14 |
| Temperature Range | -65°F @ 400°F Dynamic, -65°F @ 450°F Static |
| Tube Description | Non-Conductive White, Smooth Bore Polytetrafluoroethylene |
| Type | Medium Pressure |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| GYHGR14A-08X100 |
| GR14A08X100 |
| 70808 |
| H24306100R |
| 28078 |
| 9198 |
| 8C14XCTN |
| 2807-8 |
| EN8TW |
| 280708 |
| 04030524 |
| 77520800 |
