Brake Camshaft - 1-1/16 in. Head - 20-1/2 in. Length - 10 Splines - 1-1/2 in. Dia. - Right Hand
#CAMCAM309R
Features & Benefits
- Each End Is Induction Hardened For Maximum Strength. Durability and Reliability. Manufactured to Meet or Exceed O.E.M Specifications in Function. Form & Fit.

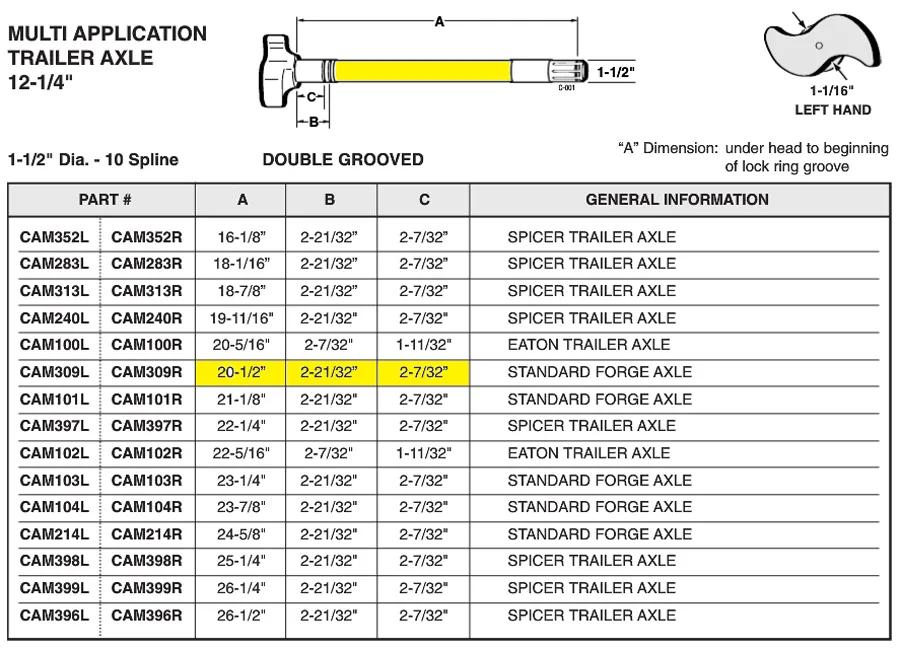

Specifications
| Application | Trailer Axle |
| Brake Camshaft Head Size | 1-1/16 in (2.71 cm) |
| Brake Camshaft Dimension B | 2-21/32 in (6.75 cm) |
| Brake Surface Diameter | 12-1/4 in (31.12 cm) |
| Camshaft Length | 20-1/2 in (52.07 cm) |
| Mfg. Part | Standard Forge 202103-213R. Spicer M12WK106-3 |
| Notes | Double Grooved |
| OE Mfg. | Dana-Spicer. Standard Forge |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 20 to 20.99 in |
Interchanges & Equivalent parts:
| 17-680 |
| 17680 |
| E-5097 |
| E5097 |
| H10109R |
| L2470 |
| R607166 |
| U51L2470 |
