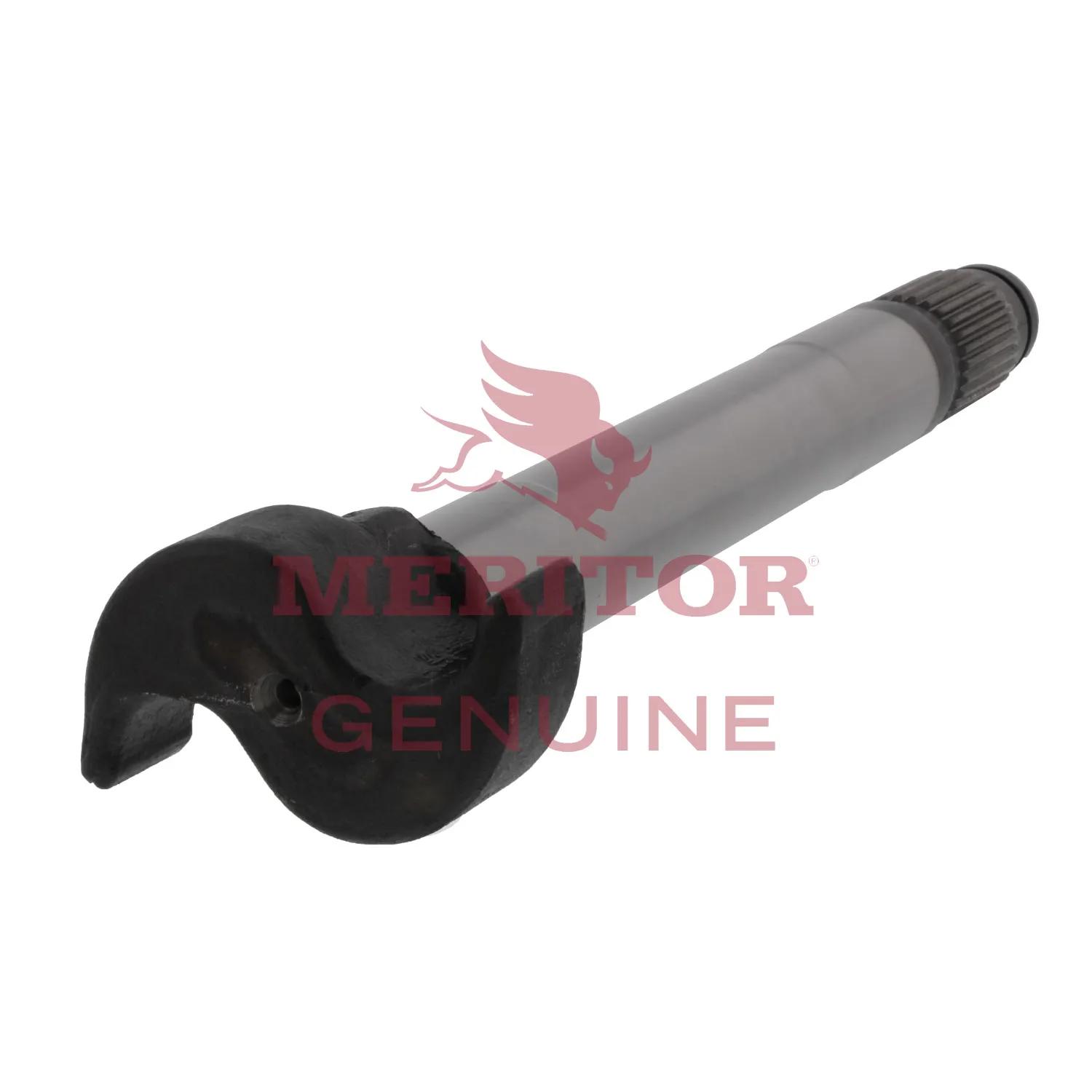

Brake Camshaft, Splines: 1-1/2 in - 10, L: 11-45/64 in
#ROC2210B7542
Features & Benefits
- RH brake camshaft for precise braking control
- Reliable RH brake camshaft for optimal performance
- Durable RH brake camshaft ensures long-lasting use
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 11-45/64 in (29.73 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 11 to 11.99 in |
Interchanges & Equivalent parts:
| 2210-G-5415S |
| 2210Y6681 |
| 4461161 |
| 04-461161 |
| 04-481171 |
| 2210B7542-RI |
| 2210G5415 |
| 8235-2210B7542 |
| 9628 2210B75 42 |
| ATI2210B7542 |
| C664R |
| CS41153 |
| CS9664R |
| E-6883 |
| E-9664 |
| H-10405R |
| H10405R |
| HQ-10341R |
| HQ10341R |
| L-3034 |
| L3574 |
| M-4003R |
| RW2210B7542 |
| TDA 2210B7542 |
| TDA2210B7542 |
| 12228112202 |
