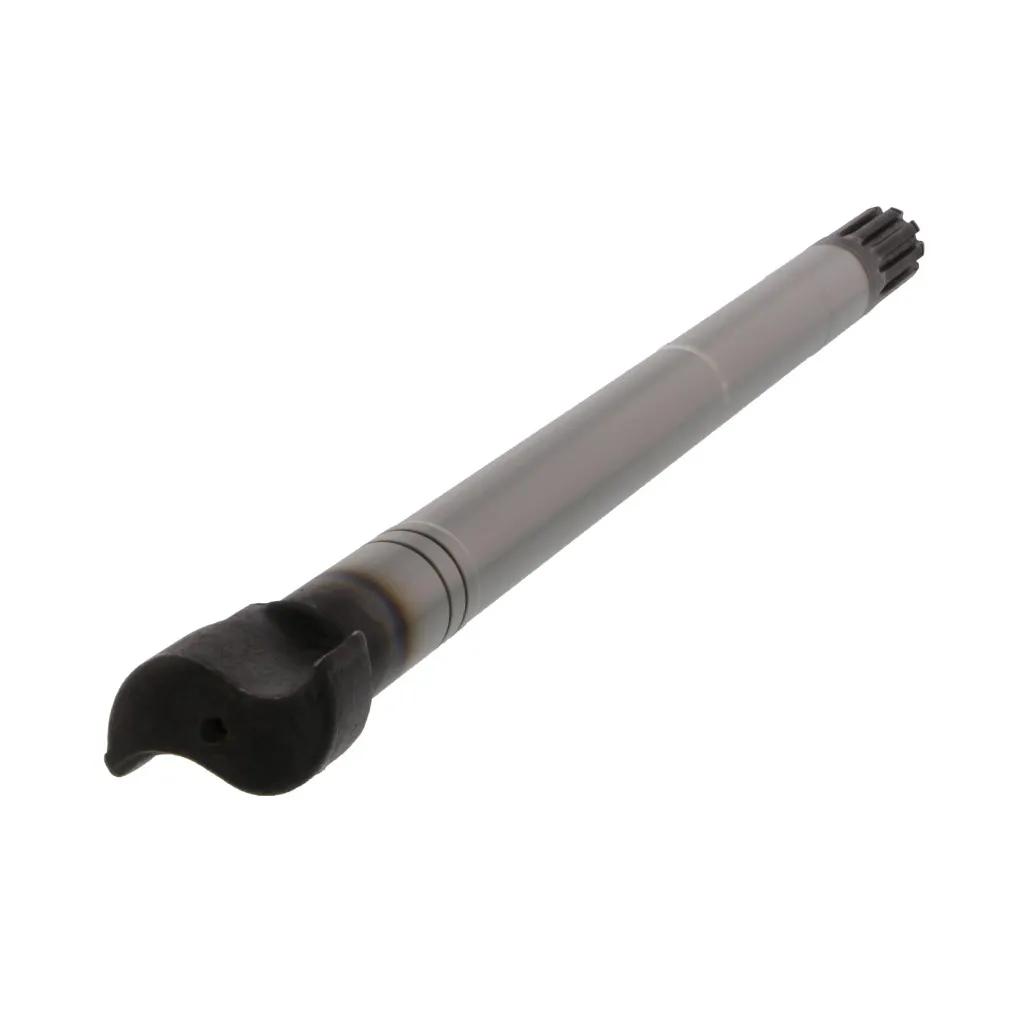

Brake Camshaft, Splines: 1-1/2 in - 10, L: 21-1/8 in
#ROCR607005
Specifications
| Brake Camshaft Head Size | 1-1/16 in |
| Brake Camshaft Dimension B | 2-21/32 in |
| Brake Diameter () | 16-1/2 in |
| Brake Surface Diameter | 12-1/4 in |
| Bushing Journal Length (in.) | 3 in |
| Camshaft Length | 21-1/8 in |
| Height | 3-19/64 in |
| Notes | Services one brake. |
| OE Mfg. | Dana-Spicer. Standard Forge |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 21 to 21.99 in |
| VMRS Code | 013-017-004 |
| Weight | 11.7 lbs |
| Width | 4-1/2 in |
Interchanges & Equivalent parts:
| CAMCAM101R |
| 04-216 |
| 04-612121 |
| 12205 |
| 17-684 |
| 17684 |
| 202103-213R |
| 202103-213RH |
| 28951 |
| 4612121 |
| 54032R |
| 66553 |
| 72419 |
| 8235-R607005 |
| A8322 |
| ATIR607005 |
| B1154R |
| C410R |
| CS1410R |
| CS41763 |
| E1410RH |
| H-10101R |
| L-1074 |
| L1074 |
| M-477R |
| M12WK1016 |
| M12WK106-6 |
| M477R |
| NL1349 |
| R607005-RI |
| TDA R607005 |
| TDAR607005 |
| TP1460 |
| UB2264R |
| 4216 |
