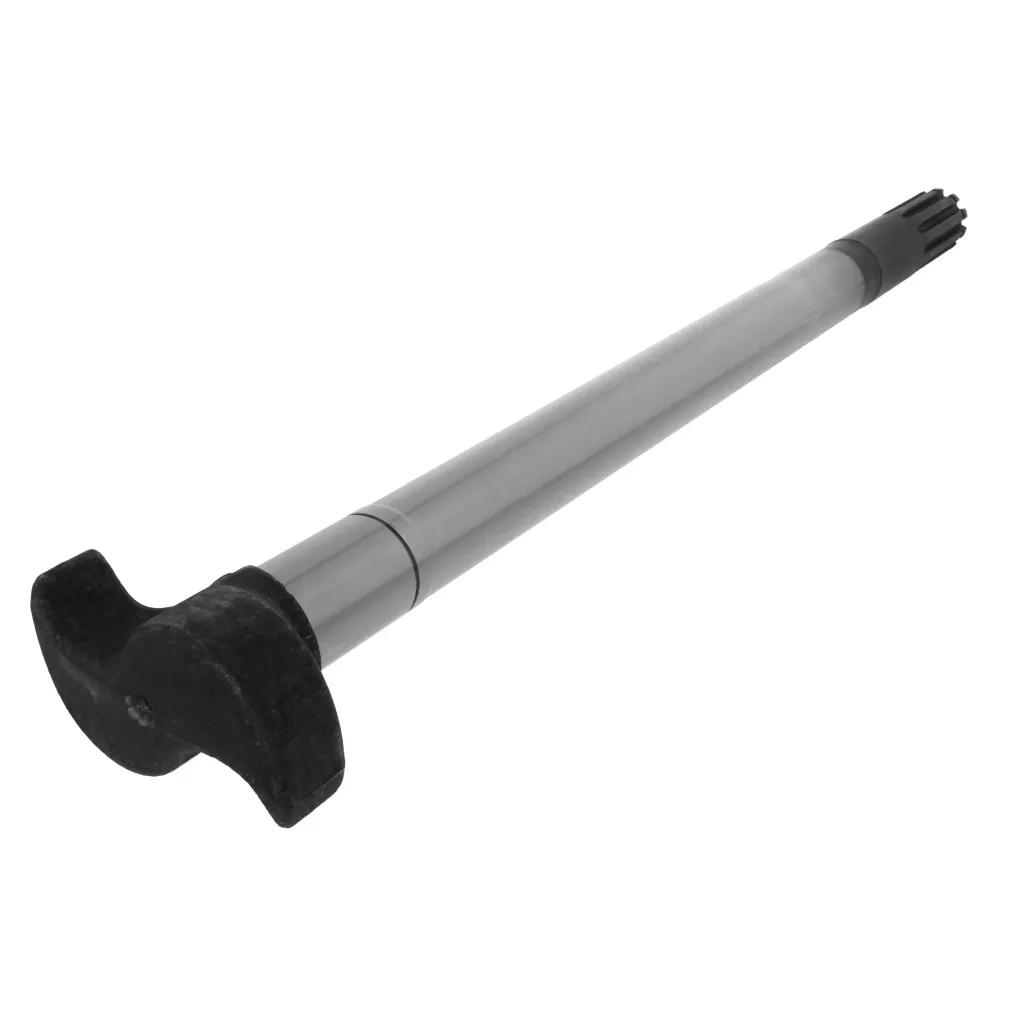

Brake Camshaft, Splines: 1-1/2 in - 10, L: 22-7/8 in
#ROC2210A6345
Features & Benefits
- For slight variations in length. extra spacer washers may be required.
- Q Plus?Ö cams can be used to replace the standard Q style cams; however. a Q style cam cannot be used to replace a Q Plus?Ö cam.
Specifications
| Brake Camshaft Head Size | 1-3/8 in (3.5 cm) |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q |
| Bushing Journal Length (in.) | 2-1/4 in (5.72 cm) |
| Camshaft Length | 22-7/8 in (58.11 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 22 to 22.99 in |
Interchanges & Equivalent parts:
| 04-572302 |
| 16408 |
| 17-595 |
| 202100-231L |
| 2210-A-6345S |
| 2210-R-2566 |
| 8235-2210A6345 |
| A8357 |
| ATI2210A6345 |
| BP2063 |
| C884L |
| CS41542 |
| CS4884L |
| CS5520 |
| E-9089 |
| E-9090 |
| E4884 |
| H-10570L |
| H10570L |
| L2949 |
| M-3173L |
| M16WK102-23 |
| M16WK103-23 |
| M16WKL10-236 |
| TDA 2210A6345 |
| TDA2210A6345 |
| WA05-5053 |
