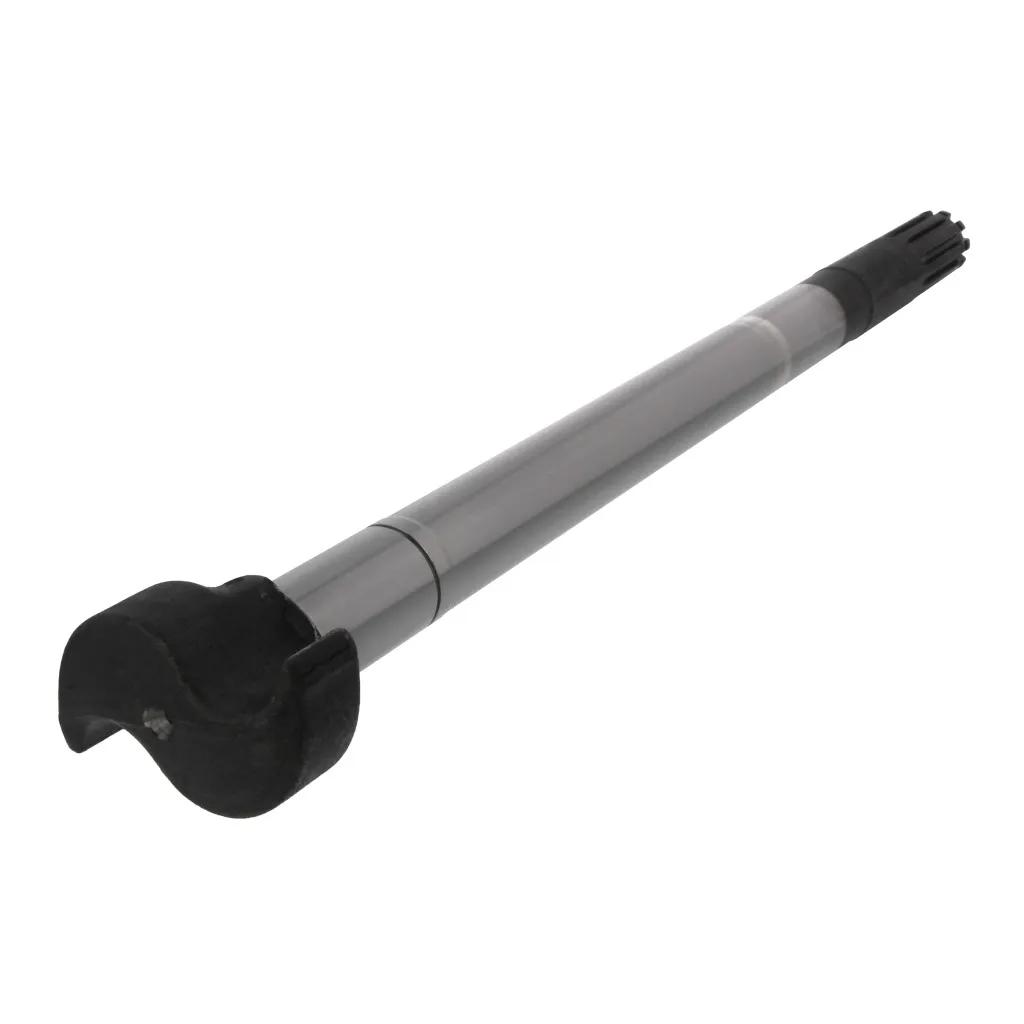

Brake Camshaft, Splines: 1-1/2 in - 10
#ROC2210Z6318
Features & Benefits
- For slight variations in length. extra spacer washers may be required.
- Q Plus?Ö cams can be used to replace the standard Q style cams; however. a Q style cam cannot be used to replace a Q Plus?Ö cam.
Specifications
| Brake Type | Meritor Q |
| Bushing Journal Length (in.) | 2-1/2 in (6.35 cm) |
| Camshaft Length | 21-1/8 in (53.66 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 21 to 21.99 in |
Interchanges & Equivalent parts:
| 04-110 |
| 04-572111 |
| 13CS3345 |
| 17-582 |
| 202100-213R |
| 202100-215-RH |
| 202100215R |
| 2210-T-2490 |
| 2210-Z-6318S |
| 2210Z6318-RI |
| 305681 |
| 54002R |
| 700-17-238 |
| 72417 |
| 8235-2210Z6318 |
| 9628 2210Z63 18 |
| A8300 |
| ATI2210Z6318 |
| B1691-18 |
| C689R |
| CS41515 |
| CS684R |
| E684 |
| E684RH |
| H-10515R |
| H10515R |
| L224 |
| M-567R |
| M16WK110-6 |
| M16WK1106 |
| NL1321 |
| TDA 2210Z6318 |
| TDA2210Z6318 |
| TP548 |
| M16WK102-19 |
| M16WK103-19 |
