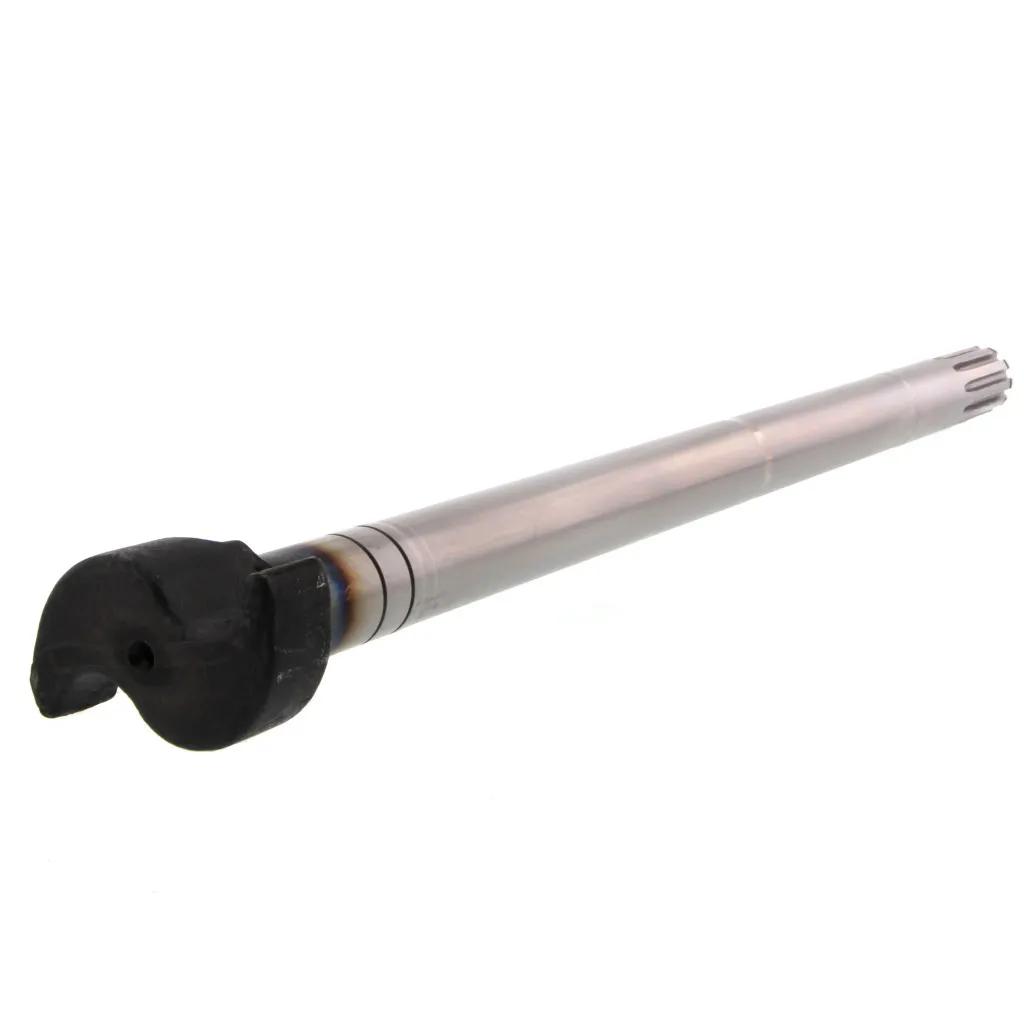

Brake Camshaft, Splines: 1-1/2 in - 10
#ROCR607001
Specifications
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Bushing Journal Length (in.) | 2-1/2 in (6.35 cm) |
| Camshaft Length | 23-15/32 in (59.62 cm) |
| Height | 2-21/32 in (6.75 cm) |
| OE Mfg. | Dana-Spicer. Eaton. Standard Forge |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 23 to 23.99 in |
| UPC | 737238465201 |
| VMRS Code | 013-017-004 |
| Weight | 6.3 lbs (13.87 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| SPI17-574 |
| 04-105 |
| 54004R |
| 13CS3001 |
| 202100-236-LH |
| 202102-236-LH |
| 65364 |
| 65365 |
| 8235-R607001 |
| A8370 |
| ATIR607001 |
| C094R |
| CAM8008 |
| CS1094 |
| CS15521R |
| CS41522 |
| CS41523 |
| E1094RH |
| FLTCS101 |
| H-10523R |
| H10523R |
| NL1327 |
| OTR1094 |
| R607001-RI |
| RWR607001 |
| S8573 |
| TDA R607001 |
| TDAR607001 |
| 17-574 |
| 17-586 |
| 202100-236R |
| 2210-W-3117 |
| 4-104 |
| 41523 |
| 700-17-243 |
| 72425 |
| B1116R |
| B1691-26 |
| E1094 |
| GD744R |
| L580 |
| L581 |
| M-744R |
| M16WK102-25 |
| M16WK103-25 |
| M16WK110-9 |
| M16WK1109 |
| M744R |
| MERR607001 |
| TP302 |
