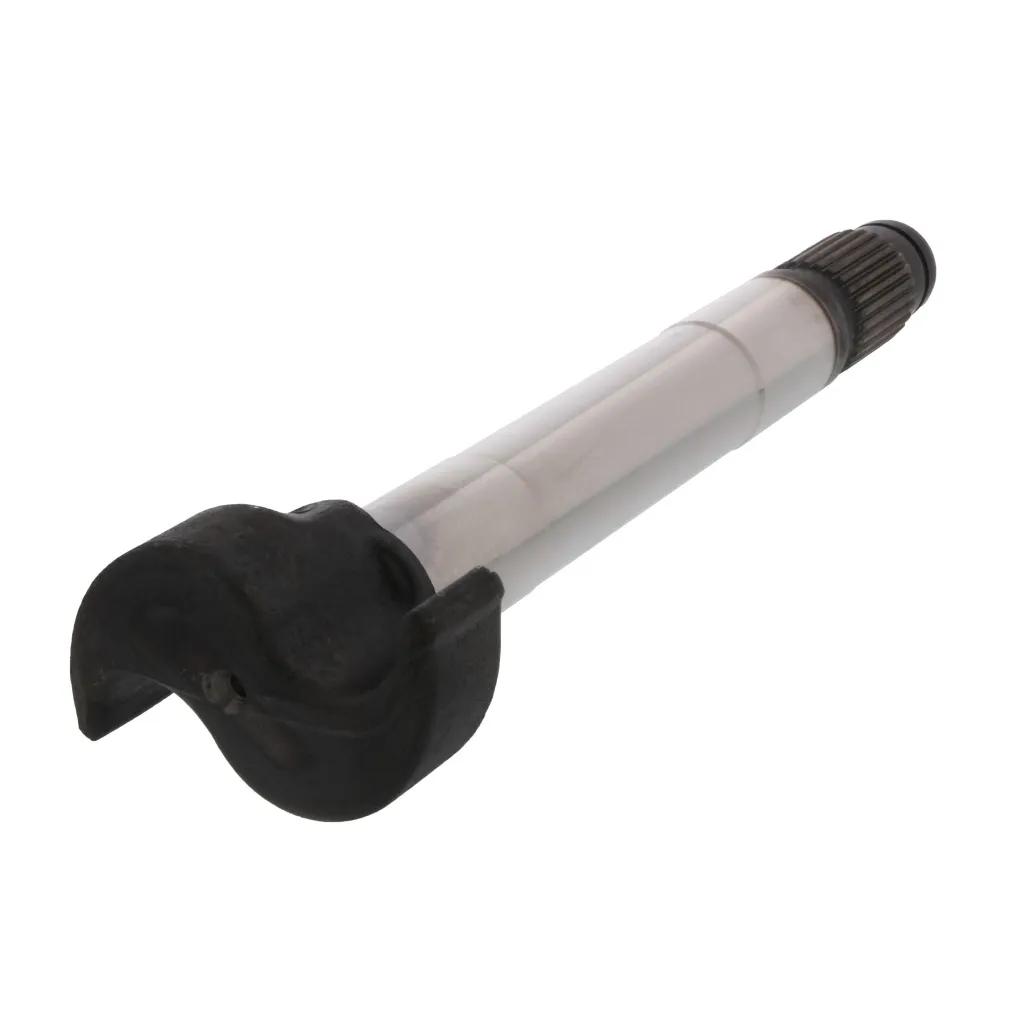

Brake Camshaft, Splines: 1-1/2 in - 28, L: 10-29/64 in
#ROC2210D7492
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 10-29/64 in (26.56 cm) |
| Height | 3-1/2 in (8.89 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 10 to 10.99 in |
| VMRS Code | 013-017-004 |
| Weight | 3.35 lbs (7.38 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| 2210-Y-6031S |
| 04-058 |
| 2210-C-6451 |
| 2210-E-5361S |
| 2210-Z-7150 |
| 2210E5361 |
| 2210Y6031 |
| 3095684 |
| ATI2210D7492 |
| BP2049 |
| E-3348 |
| TDA 2210D7492 |
| TP8534 |
| 04-461051 |
| 04-481041 |
| 18-510 |
| 18-826 |
| 18-828 |
| 2210-P-6958 |
| 4461051 |
| 4481041 |
| 8235-2210D7492 |
| 8235-2210P6958 |
| A8052 |
| C656R |
| CS40179 |
| CS9656R |
| H-10557R |
| H10557R |
| HQ-10307R |
| HQ10307R |
| L-2872 |
| L-3092 |
| M-3179R |
| M-4001R |
| 2210D7492-RI |
| TDA2210D7492 |
