Automann - Brake Camshaft, Splines: 1-1/2 in - 28, L: 22-7/8 in - MZB123.282228.04


Automann logo

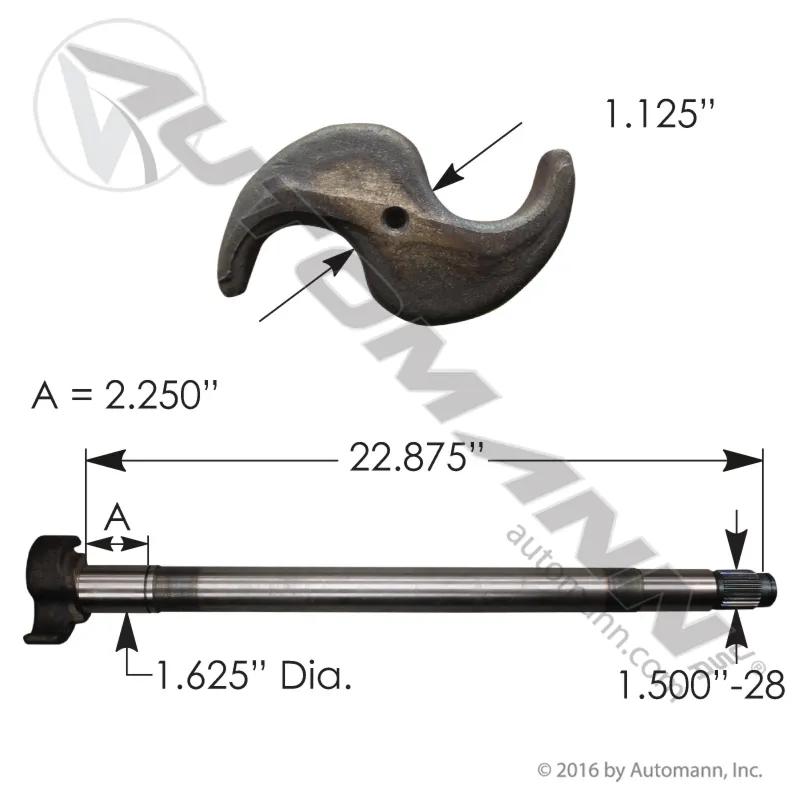

Brake Camshaft, Splines: 1-1/2 in - 28, L: 22-7/8 in

#MZB123.282228.04

Specifications


Brake Camshaft Head Size 1-1/8 in (2.86 cm)
Brake Camshaft Dimension B 2-7/32 in (5.64 cm)
Brake Type XL
Camshaft Length 22-7/8 in (58.11 cm)
Effective Length 22-7/8 in (58.11 cm)
Right or Left Side Right
Spline Diameter 1-1/2 in (3.81 cm)
Spline Diameter-Spline Count 1-1/2 in - 28
Standard Length 22 to 23 in
Brake Surface Diameter 16-1/2 in (41.91 cm)
Brake Diameter () 16-1/2 in
Splines 28

Interchanges & Equivalent parts:


R607318, 123.282228.04, R607318, 123.282228.04
