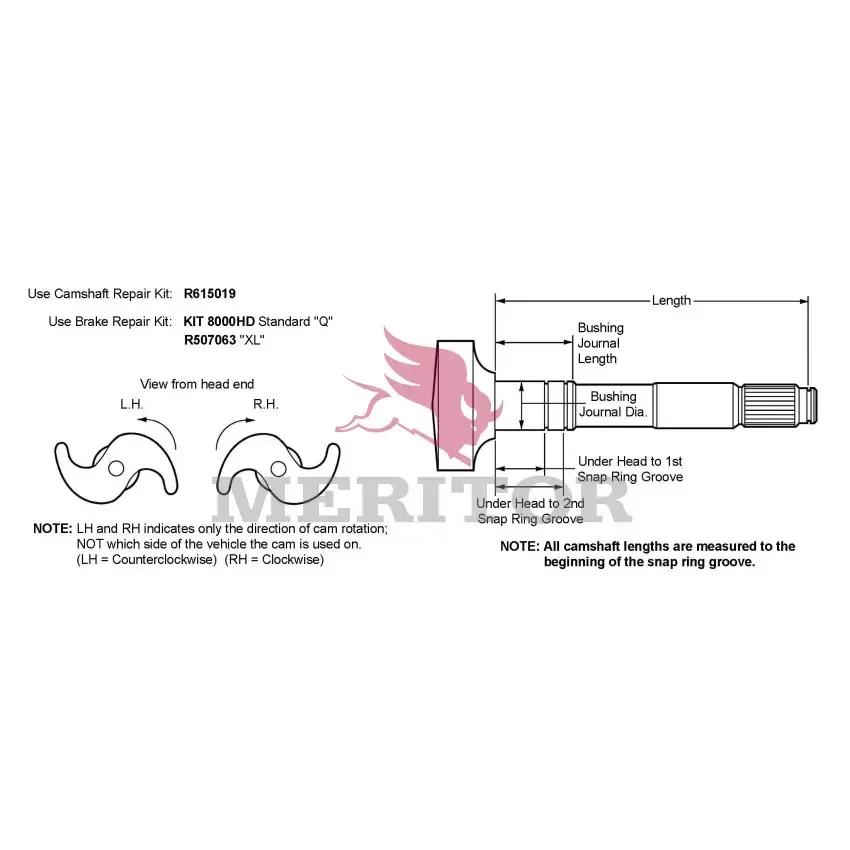

Brake Camshaft, Splines: 1-1/2 in - 28, L: 22-7/8 in

#ROCR607198

Specifications


Brake Camshaft Head Size 1-1/8 in (2.86 cm)
Brake Camshaft Dimension B 2-7/32 in (5.64 cm)
Brake Type Xtralife
Bushing Journal Length (in.) 2-1/2 in (6.35 cm)
Camshaft Length 22-7/8 in (58.11 cm)
Effective Length 22-15/16 in (58.27 cm)
OE Mfg. Dana-Spicer
Paired Camshaft R607197
Right or Left Side Right
Spline Diameter 1-1/2 in (3.81 cm)
Spline Diameter-Spline Count 1-1/2 in - 28
Length Range 22 to 23 in
Brake Surface Diameter 16-1/2 in (41.91 cm)
Splines 28

Interchanges & Equivalent parts:


04-586, 04-602301, 04586, 17-510, 4586, 8235-R607198, ATIR607198, C099R, CS41403, CS9099R, E-9099, EM3188R, H-10157R, H-10425R, H10157R, H10425R, MR607198, OTR9099, TDA R607198, TDAR607198, L-3046, M-3188R, M16WKR20-231
