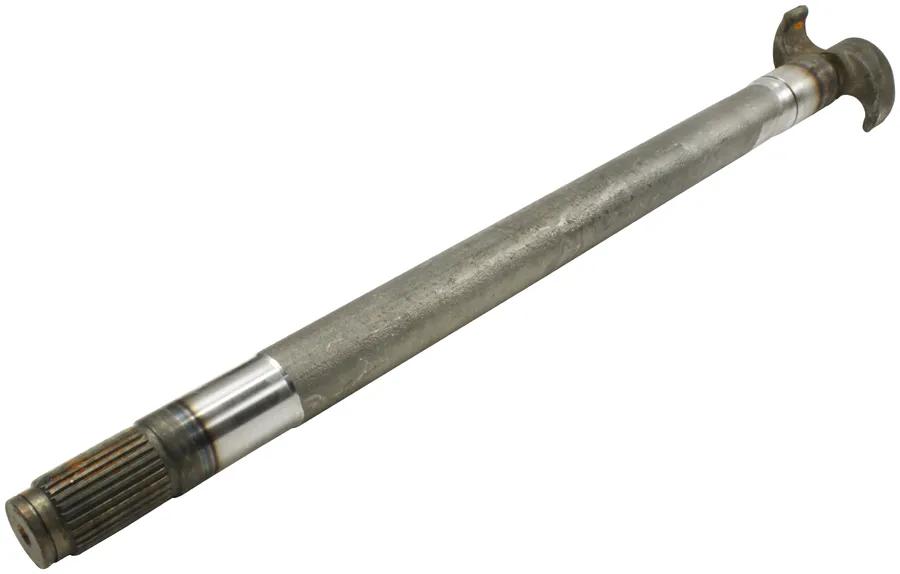

Brake Camshaft, Splines: 1-1/2 in - 28, L: 26-7/8 in
#CAMCAM243R
Features & Benefits
- Each End Is Induction Hardened For Maximum Strength. Durability and Reliability. Manufactured to Meet or Exceed O.E.M Specifications in Function. Form & Fit.
Specifications
| Application | Trailer Axles 16-1/2 in. XL |
| Axle Manufacturer | Spicer XL |
| Brake Camshaft Dimension A | 26-7/8 in. |
| Brake Camshaft Head Size | 1-1/8 in (2.86 cm) |
| Brake Camshaft Diameter | 1-1/2 in. |
| Brake Camshaft Hardware Kit Type | HCK1410, HCK1445 |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Camshaft # of Splines | 28 Splines |
| Brake Shoe Size | 16-1/2 in. |
| Camshaft Length | 26-7/8 in (68.27 cm) |
| Notes | Double Grooved |
| OEM Manufacturer Number | Spicer M16WKR20-271 |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Standard Length | 25 to 26 in |
| Used on Right or Left | Right Hand |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Splines | 28 |
