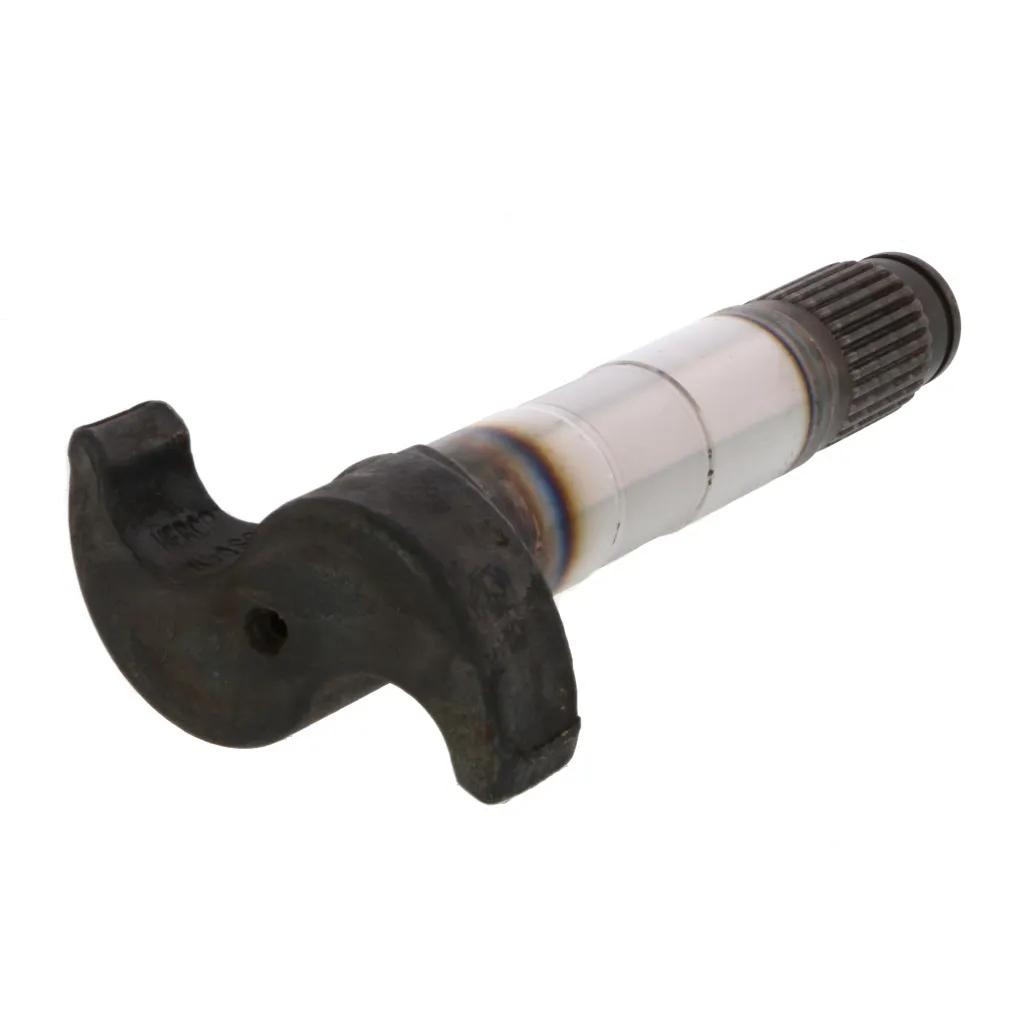

Brake Camshaft, Splines: 1-1/2 in - 28, L: 7-45/64 in
#ROC2210L7396
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 7-45/64 in (19.57 cm) |
| Height | 3-3/32 in (7.86 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 7 to 7.99 in |
| VMRS Code | 013-017-004 |
| Weight | 2.73 lbs (6 kg) |
| Width | 6-3/64 in (15.36 cm) |
Interchanges & Equivalent parts:
| MER2210L7396 |
| 04-480772 |
| 04480772 |
| 13CS3124 |
| 18-501 |
| 2210-A-7125 |
| 2210-P-5840 |
| 2210-P-5840S |
| 2210-X-5458 |
| 2210-X-5458S |
| 2210L7396-RI |
| 3915781 |
| 4480772 |
| 8235-2210L7396 |
| ATI2210L7396 |
| C645L |
| CS40172 |
| CS9645L |
| HQ-10300L |
| HQ10300L |
| M-3108L |
| RW2210L7396 |
| TDA 2210L7396 |
| TDA2210L7396 |
| E-9645 |
| E-9646 |
| L-3038 |
| L-3039 |
