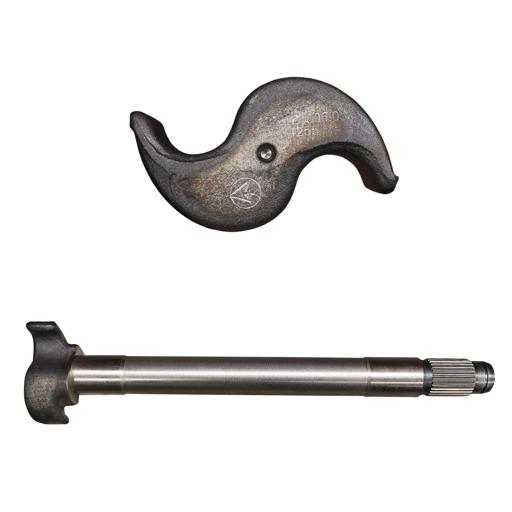

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210A7671
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 15-13/64 in (38.62 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 15 to 15.99 in |
Interchanges & Equivalent parts:
| CAMCAM205L |
| 04-461532 |
| 04-481532 |
| 18-541 |
| 2210-M-6461 |
| 2210L5784 |
| 2210M6461S |
| 2210-L-5784S |
| 2210-Y-7071 |
| 2210A7671-RI |
| 4461532 |
| 590047C1 |
| 8235-2210A7671 |
| 8235-2210Y7071 |
| 9628 2210A76 71 |
| ATI2210A7671 |
| BP2059 |
| C681L |
| CS40198 |
| CS9681L |
| E-9083 |
| H-10776L |
| H10776L |
| HQ-10328L |
| HQ10328L |
| L-3111 |
| L-3335 |
| M-3685L |
| TDA 2210A7671 |
| TDA2210A7671 |
| TP8589 |
