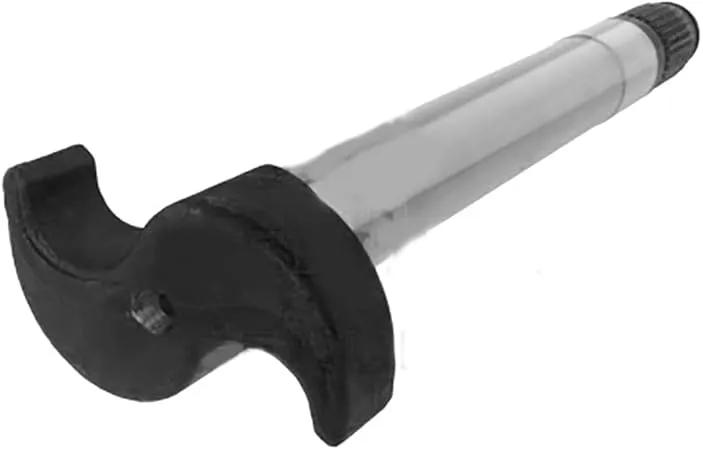

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210E7649
Specifications
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 14-45/64 in (37.35 cm) |
| Height | 3-11/32 in (8.5 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 14 to 14.99 in |
| VMRS Code | 013-017-004 |
| Weight | 4.29 lbs (9.45 kg) |
| Width | 4-21/32 in (11.83 cm) |
Interchanges & Equivalent parts:
| 2210-S-7949 |
| 122.281423.01 |
| 2210-R-5426 |
| 2210-R-5426S |
| 8235-2210E7649 |
| ATI2210E7649 |
| E-11575 |
| HQ-10674L |
| TDA 2210E7649 |
| TDA2210E7649 |
