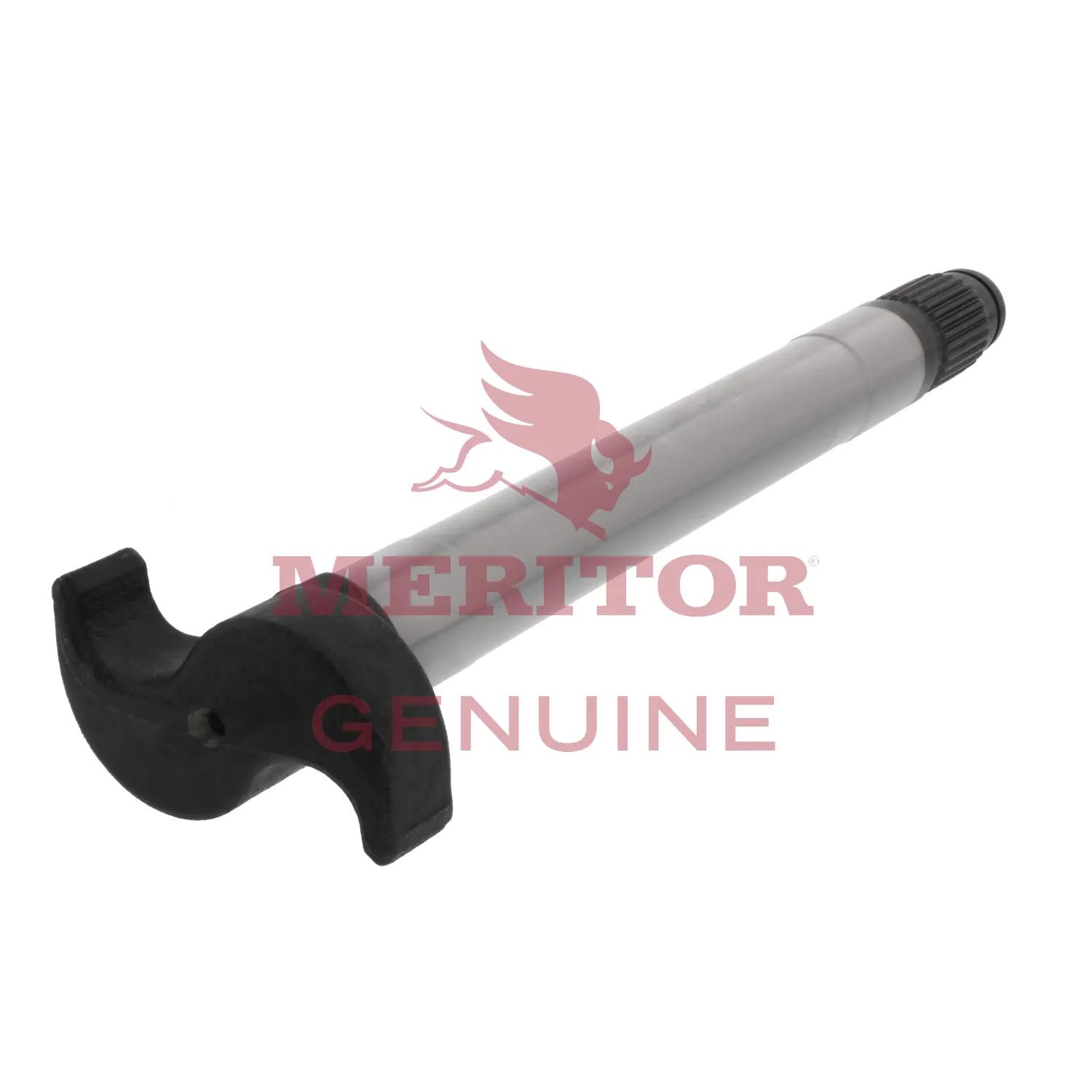

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210J7680
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 15-7/16 in (39.22 cm) |
| Height | 3-11/32 in (8.5 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 15 to 15.99 in |
| UPC | 737238838852 |
| VMRS Code | 013-017-004 |
| Weight | 4.46 lbs (9.83 kg) |
| Width | 4-21/32 in (11.83 cm) |
Interchanges & Equivalent parts:
| MER2210J7680 |
| 1695418C1 |
| 221001059E |
| 2210J7680-RI |
| 3093666 |
| 8235-2210J7680 |
| ATI2210J7680 |
| RW2210J7680 |
| TDA 2210J7680 |
| TDA2210J7680 |
