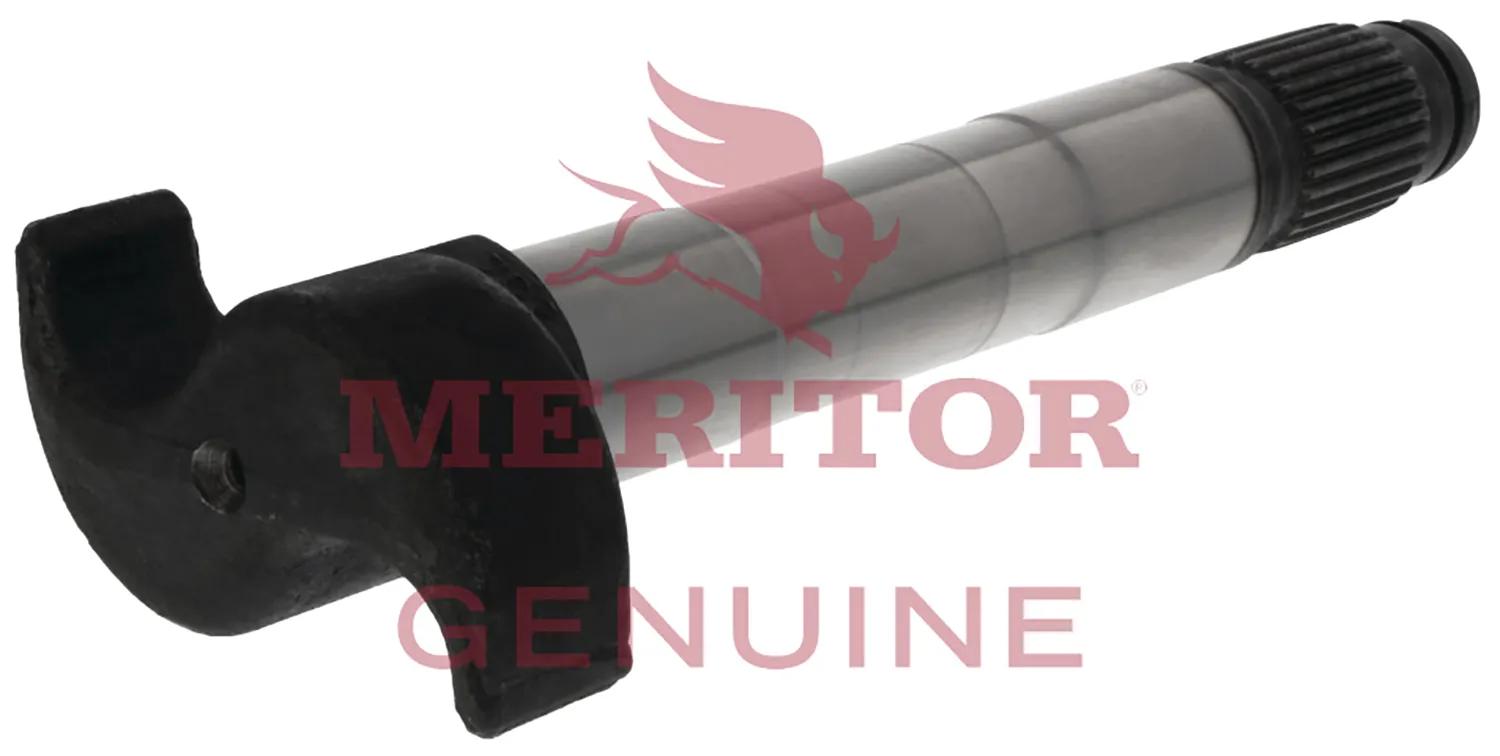

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210Q7453
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Height | 3-1/2 in (8.89 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| VMRS Code | 013-017-004 |
| Weight | 3.13 lbs (6.9 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| 2210Q7453-RI |
| 2210Q7453F |
| 02121606 |
| 1119981 |
| 2210-R-5374 |
| 2210R5374S |
| 2210W7147 |
| 2500923C1 |
| 8235-2210Q7453 |
| ATI2210Q7453 |
| BP2097 |
| CS11527L |
| E-11527 |
| H-11024L |
| H11024L |
| HQ-10384L |
| HQ10384L |
| RW2210Q7453 |
| TDA 2210Q7453 |
| TDA2210Q7453 |
