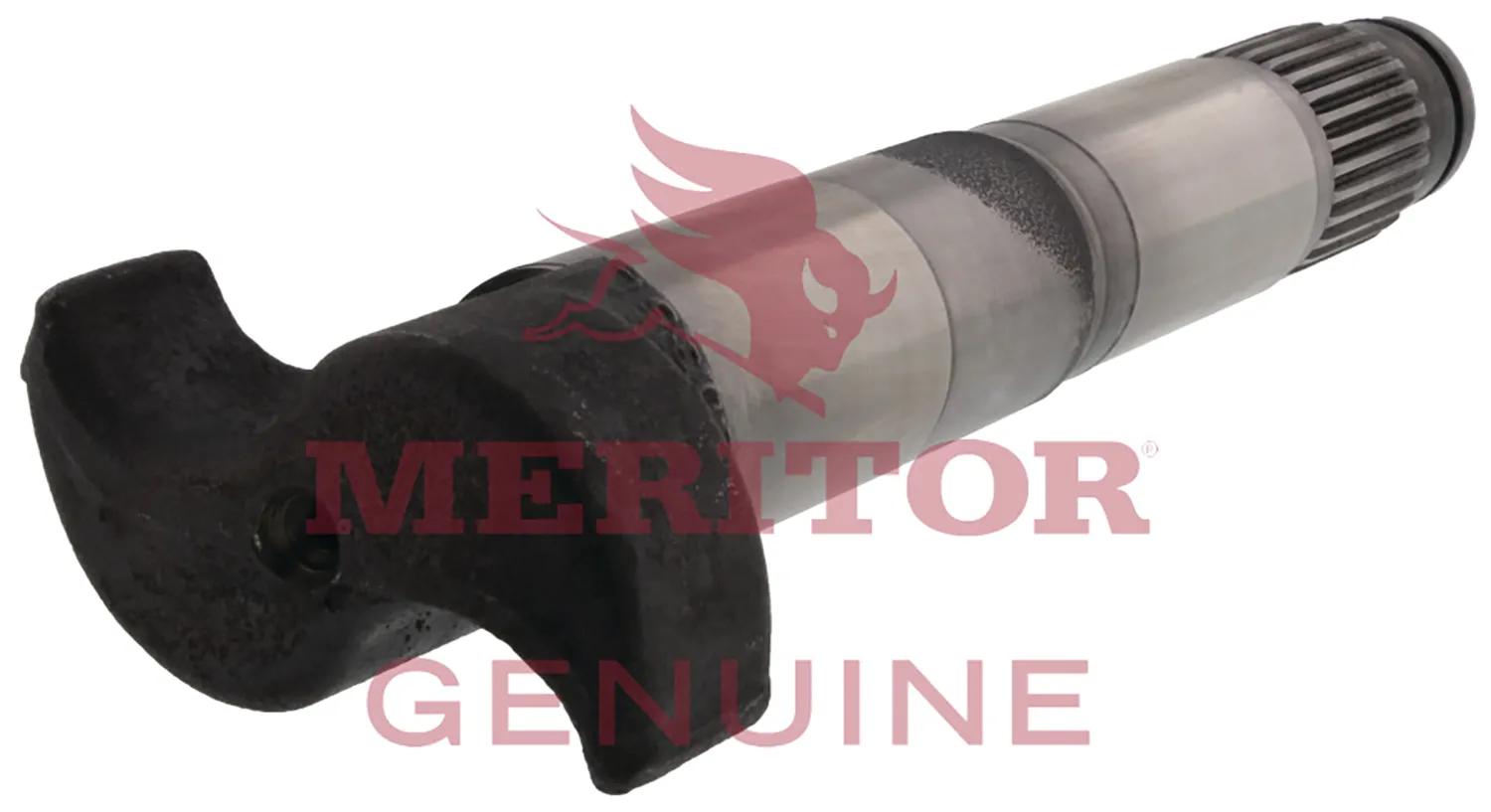

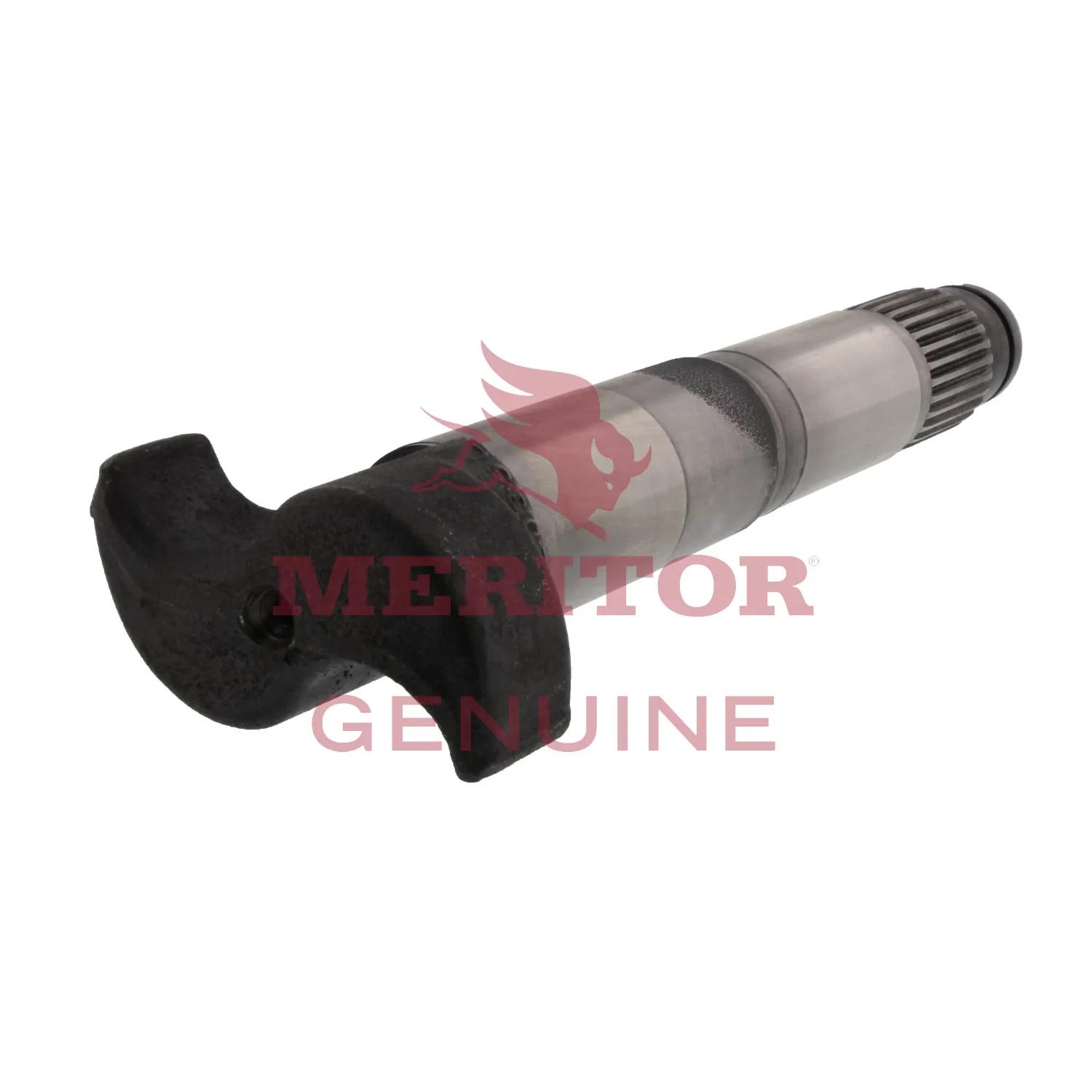

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210Q8181
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Brake Surface Diameter | 15 in (38.1 cm) |
| Brake Type | Meritor Q Plus |
| Height | 3-1/2 in (8.89 cm) |
| Notes | LX/MX 500 Series |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| VMRS Code | 013-017-004 |
| Weight | 2.94 lbs (6.47 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| 122.280822.05 |
| 2210Q8181-RI |
| 2505241C1 |
| 8235-2210Q8181 |
| 9628 2210Q81 81 |
| ATI2210Q8181 |
| E11968 |
| H-12029R |
| RW2210Q8181 |
| TDA 2210Q8181 |
| TDA2210Q8181 |
