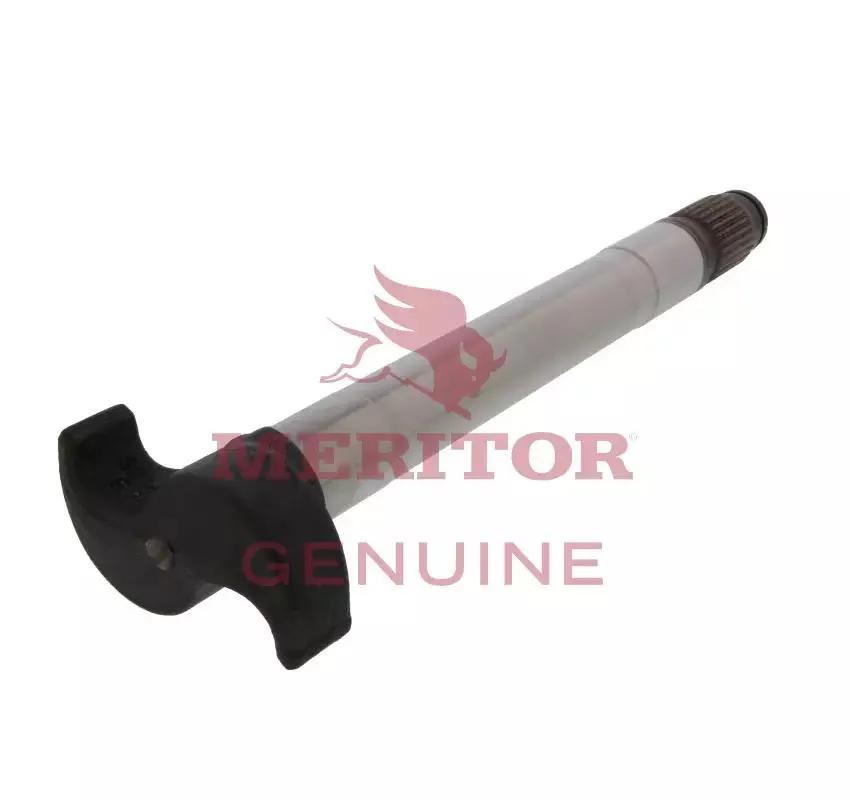

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210V8394
Specifications
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 12-61/64 in (32.91 cm) |
| Height | 3-11/32 in (8.5 cm) |
| Notes | LX/MX 500 Series |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 12 to 12.99 in |
| VMRS Code | 013-017-004 |
| Weight | 4.29 lbs (9.45 kg) |
| Width | 4-21/32 in (11.83 cm) |
Interchanges & Equivalent parts:
| 122.281231.01 |
| 2210V8394-RI |
| 8235-2210V8394 |
| 85101821 |
| ATI2210V8394 |
| E-11627 |
| HQ-12086L |
| TDA 2210V8394 |
| TDA2210V8394 |
