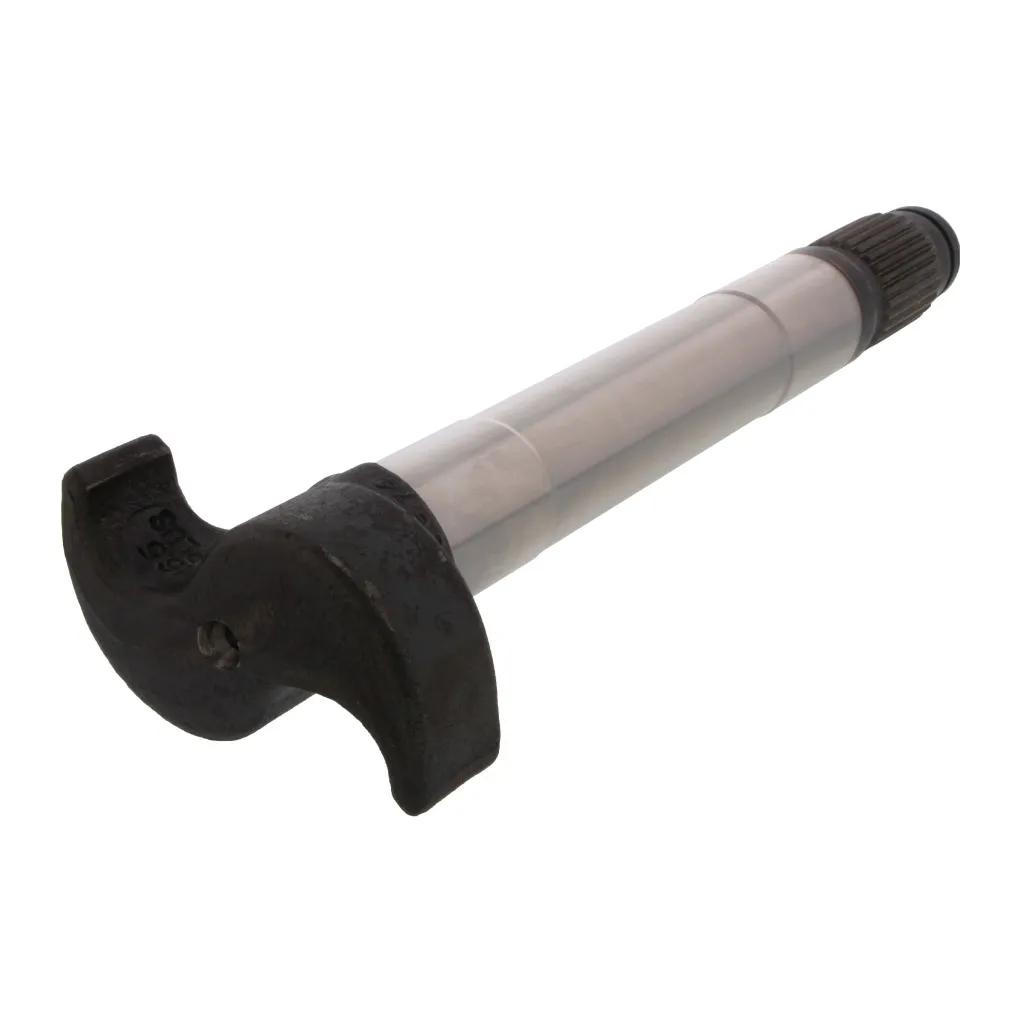

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210W7511
Specifications
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 10-13/16 in (27.47 cm) |
| Height | 3-1/2 in (8.89 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 10 to 10.99 in |
| VMRS Code | 013-017-004 |
| Weight | 3.44 lbs (7.57 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| 04-481102 |
| 1114774 |
| 2210-D-5438 |
| 2210-D-5438S |
| 2210W7511-RI |
| 8235-2210W7511 |
| 9628 2210W75 11 |
| ATI2210W7511 |
| E-11547 |
| HQ-10398L |
| HQ10398L |
| TDA 2210W7511 |
| TDA2210W7511 |
| TWD2210W7511 |
