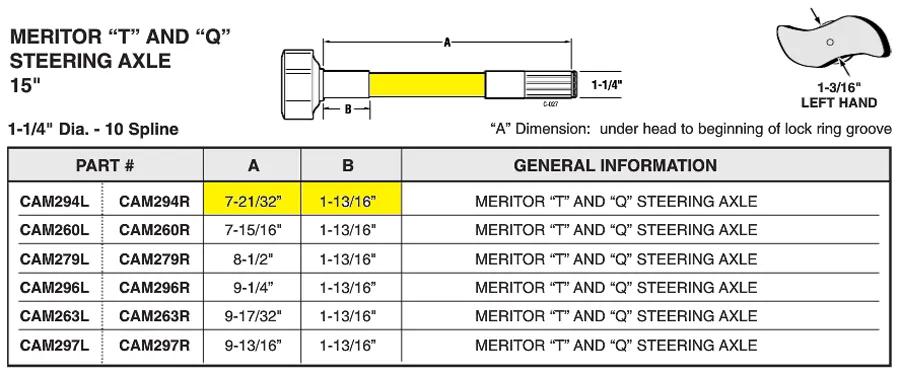

Brake Camshaft, Splines: 1-1/4 in - 10, L: 7-21/32 in
#CAMCAM294L
Features & Benefits
- Each End Is Induction Hardened For Maximum Strength. Durability and Reliability. Manufactured to Meet or Exceed O.E.M Specifications in Function. Form & Fit.
Specifications
| Application | Meritor Steering Axle 15 in. Brake |
| Axle Manufacturer | Meritor / Rockwell |
| Brake Camshaft Dimension A | 7-21/32 in. |
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Diameter | 1-1/4 in. |
| Brake Camshaft Hardware Kit Type | HCK1428 |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Camshaft # of Splines | 10 Splines |
| Brake Shoe Size | 15 in. |
| Brake Type | Q. T |
| Camshaft Length | 7-21/32 in (19.45 cm) |
| Effective Length | 7-11/16 in (19.53 cm) |
| OEM Manufacturer Number | Meritor 2210-D-6842. 2210-Q-5399 |
| Right or Left Side | Left |
| Spline Diameter | 1-1/4 in (3.18 cm) |
| Spline Diameter-Spline Count | 1-1/4 in - 10 |
| Standard Length | 7 to 8 in |
| Used on Right or Left | Left Hand |
| Brake Surface Diameter | 15 in (38.1 cm) |
| Brake Diameter () | 16-1/2 in |
| Splines | 10 |
