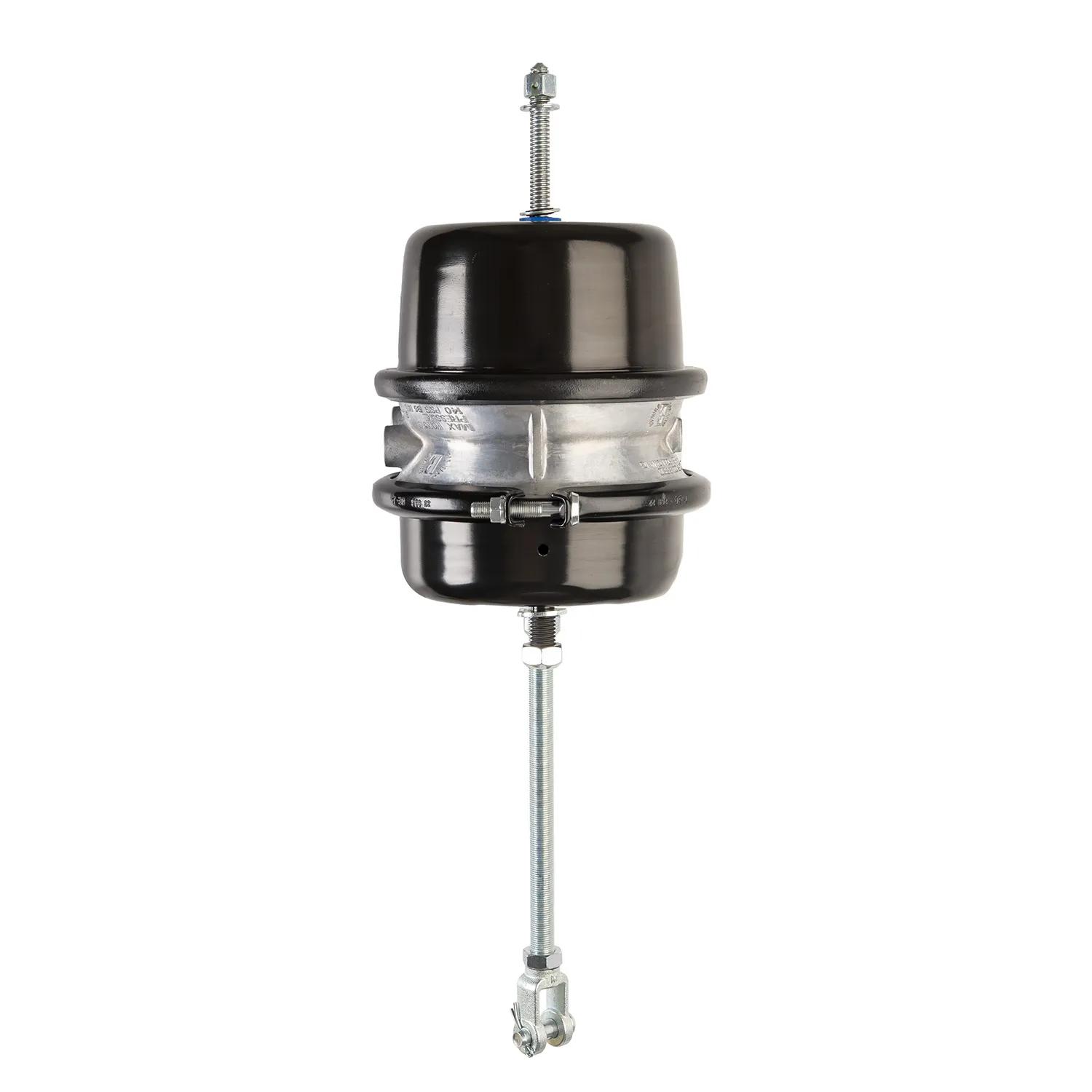

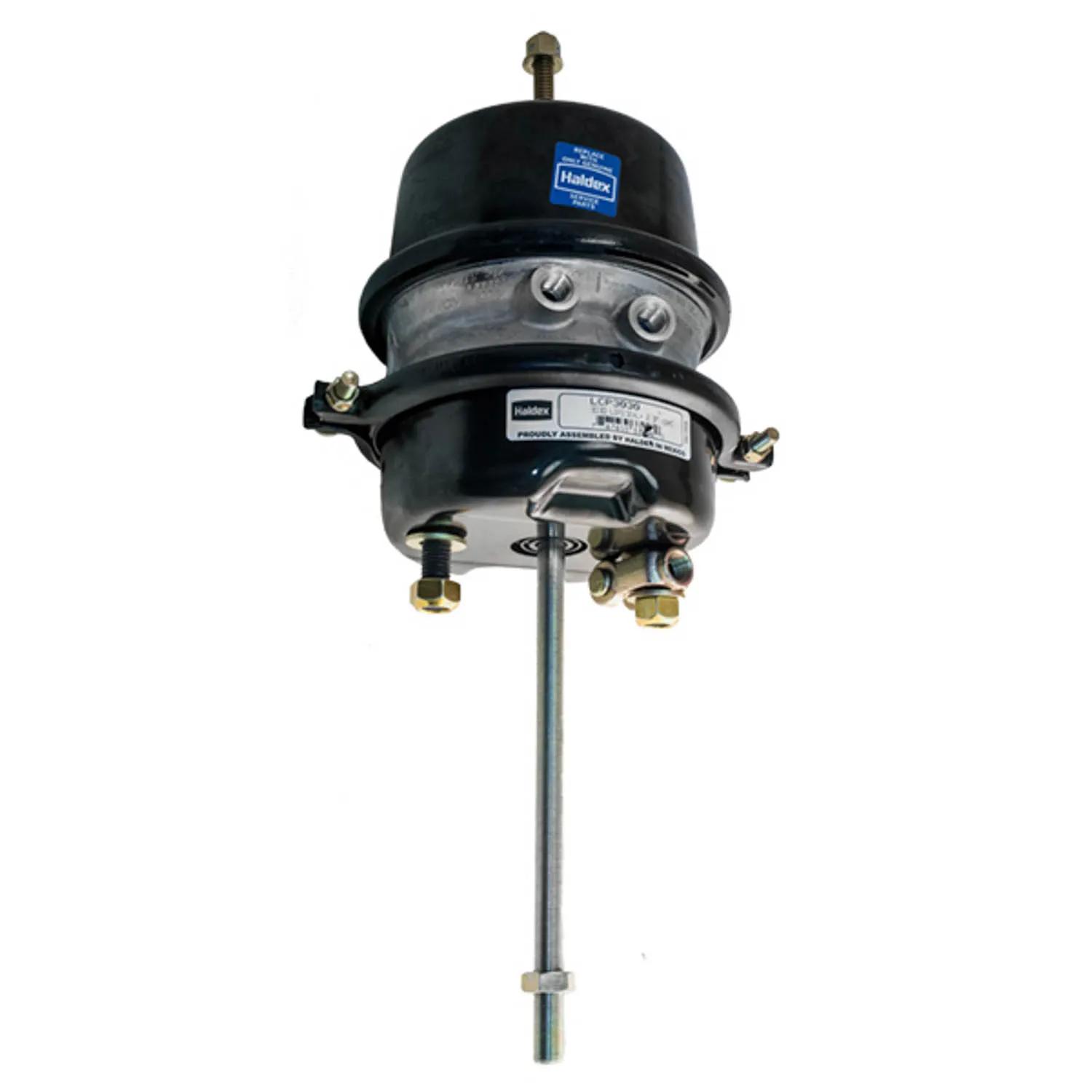

Brake Chamber, Combination 30/30 Type, Push Rod: 10 in, 2-1/2 in Stroke
#ANLLCP3030
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems.Brake Chamber, Combination, 30-30 Chamber, Standard Stroke, Prop65, 10 in Push Rod Length, 2-1/2 in Stroke Length, 10.18 in Width
Features & Benefits
- 8 Year Standard Warranty / 4 Years for Sever-Vocational
- Life Seal Plus
- Orange Alert Stroke Indicator
- Piloting Dust Shield w/ Sealed Combination
- Epoxy Coated Spring Chamber Permanently Attached For Safety
- Epoxy Powder Coated Housing w/ Sealed Combination
- Sealed Spring Chamber
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Heavy duty housing
- Standard power spring
- Threaded with clevis
- With welded clevis
Specifications
| Stroke Inch | 2-1/2 in |
| Type | Life Seal Plus Combo |
| Weight | 22.1 lb |
| Chamber Type | 30-30 |
| Fits Models | T30/30 |
| Inlet Port | Round Ports |
| Mounting Stud | Threaded Clevis |
| Prop65 | Yes |
| Push Rod Length | 10 in |
| Stroke Type | Standard |
| Width | 10.18 in |
| Product Category | Brake Chamber |
Interchanges & Equivalent parts:
| 50866004 |
| 5396-LCP3030 |
| HALLCP3030 |
| MIDLCP3030 |
| SB3030CC |
| LC3030 |
| LC3030P40 |
| K3030LC |
| 1493030000 |
| 1493030009 |
| 1493030010 |
| 1493030014 |
| 1493030024 |
| 1493030029 |
| 1493030035 |
| 1493030038 |
| 1493030039 |
| 1493030042 |
| 1493030044 |
| 1493030047 |
| 1493030049 |
| 1493030050 |
| 1493030051 |
| 1493030070 |
| 1473030007 |
| 1493030011 |
| 1493030043 |
| 1493030001 |
| 1493030007 |
| 1493030023 |
| 1493030004 |
| 1493030052 |
| 1493030005 |
| 1493030015 |
| 1493030020 |
| 1493030006 |
| 1493030069 |
| 1493030008 |
| 1493030041 |
| 1493030012 |
| 1493030016 |
| 1493030030 |
| 1493030045 |
| 1493030013 |
| 1493030018 |
| 1493030046 |
| 1493030054 |
| 1493030019 |
| 1493030028 |
| 1493030048 |
| 1493030034 |
| 1493030053 |
| 1493030071 |
| 1493030072 |
| 1493030073 |
| 1493030074 |
| 1493030075 |
| 1493030076 |
| 1493030077 |
| 1493030078 |
| 1493030081 |
| 1493030083 |
| 1493030084 |
| 1493030085 |
| 1493030086 |
| 1493030087 |
| 1493030088 |
| 1493030089 |
| 1493030090 |
| 1493030091 |
| 1493030092 |
| 1493030093 |
| 1493030094 |
| 1493030096 |
| 1493030097 |
| 1493030098 |
| 1493030099 |
| 1493030104 |
| 1493030105 |
| 1493030106 |
| 1493030107 |
| 1493030108 |
| 1493030109 |
| 1493030110 |
| 1493030111 |
| 1493030112 |
| 1493030113 |
| 1493030114 |
| 1493030115 |
| 1493030118 |
| 14930301 |
| 781023452 |
| V19LC3030P40 |
| 38016 |
| S242252 |
| C306843 |
| 46048300000 |
| 91220007 |
| S285183 |
| PNA560 |
| ANB34231 |
| 38015 |
| C285182 |
| S285173 |
| 91220058 |
| 46035600000 |
| C306844 |
| 2142976 |
| 308016 |
| ELC3030 |
| 91220026 |
| C306841 |
| M17WR303672 |
| C306845 |
| S285182 |
| 2134937 |
| 91220016 |
| 46033800000 |
| 308015 |
| ZOR282041 |
| 91220079 |
| C306842 |
| N224432 |
| C285172 |
| AC412114 |
| S275172 |
| 1946005 |
| PNA561 |
| C306846 |
| 781023453 |
| N224431 |
