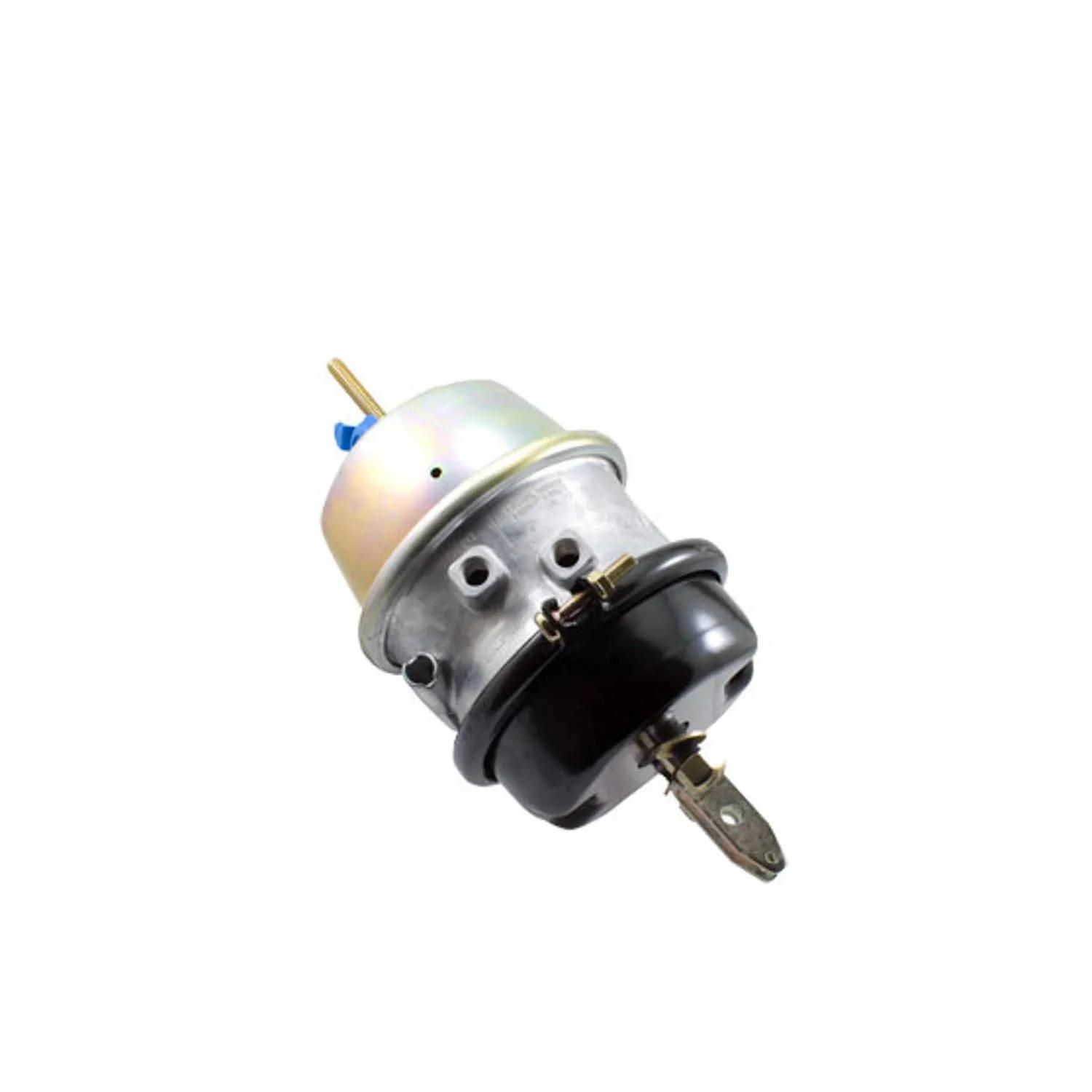

Brake Chamber, Combination T30/30, 3 in Stroke, 1 in Push Rod, Steel
#ANLGC3030LCW
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems.Brake Chamber, Combination, 30-30 Chamber, Long Stroke, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, Prop65, 1 in Push Rod Length, 3 in Stroke Length
Features & Benefits
- 4 Year. Unlimited Miles Over-The-Road Warranty. (2 Year. 200,000 Miles Severe Duty).
- Gold Seal LS; Top to clevis center=2.25 in.
- Piloting Dust Shield w/ Sealed Combination
- Piloting Diaphragm
- Heat Treated. Powder Coated Spring
- Epoxy Coated Spring Chamber Permanently Attached For Safety
- Epoxy Powder Coated Housing w/ Sealed Combination
- Cut-to-Length Pushrod
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Superior power spring technology; advanced powder coating process; resists corrosion and fatigue
- Double O-ring centerseal; two O-rings for positive sealing and plastic bearings for long life
- World class diaphragm; high quality rubber compound, resistant to heat and cold; superior flexibility even at -40°F
Specifications
| Material | Steel |
| Stroke Inch | 3 in |
| Type | Gold Seal Combo |
| Weight | 21.9 lb |
| Application | S-Cam Brakes (Drum) |
| Chamber Type | 30-30 |
| Fits Models | T30/30 |
| Includes | Welded Clevis |
| Inlet Port | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Position | Top to clevis center=2.25 in |
| Prop65 | Yes |
| Push Rod Length | 1 in |
| Stroke Type | Long |
| Product Category | Brake Chamber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| GC3030LCW |
| 3230951 |
| 3231951 |
| HD12964C |
| GC3030LCWP40 |
| HDX GC3030LCW |
| 5396-GC3030LCW |
| 767653330990 |
| ABP N42A W3030CD |
| BTS3030LSWC |
| HALGC3030LCW |
| SB3030LSW |
| WA12964 |
| 3030TNW32273 |
| 3030TVW34200 |
| S1373030051 |
| WSGC3030LCWP40 |
| WA3030T |
| 1373030033 |
| 1373030036 |
| 1373030037 |
| 1373030112 |
| MIDGC3030LCW |
| ZZGC3030LCW |
| 1373030030 |
| 1373030031 |
| 1373030032 |
| 1373030034 |
| 1373030035 |
| 1373030038 |
| 1373030044 |
| 1373030050 |
| 1373030051 |
| 1373030052 |
| 1373030053 |
| 1373030054 |
| 1373030055 |
| 1373030056 |
| 1373030057 |
| 1373030058 |
| 1373030063 |
| 1373030064 |
| 1373030118 |
| 1373030165 |
| 1373030182 |
| 1373030183 |
| 1373030187 |
| 1373030188 |
| 1373030189 |
| 1373030190 |
| 1373030191 |
| 1373030192 |
| 1373030193 |
| 1373030194 |
| 1373030195 |
| 1373030209 |
| 1373030214 |
| 1373030215 |
| 1373030217 |
| 1373030218 |
| 1373030219 |
| 1373030220 |
| 1373030221 |
| 1373030256 |
| 1373030257 |
| 1373030258 |
| 1373030259 |
| 1373030320 |
| 1373030322 |
| 1373030323 |
| 1373030324 |
| 1373030350 |
| 1373030351 |
| 1373030352 |
| 1373030353 |
| 1373030354 |
| 1373030355 |
| 1373030368 |
| 1373030369 |
| 1373030389 |
| 1373030390 |
| 1373030391 |
| 1373030394 |
| 1373030395 |
| 1373030396 |
| 1373030397 |
| 1373030400 |
| 137 |
| BXNT3030ELSWC |
| HDXGC3030LCW |
| V423232951 |
| NT3030ELSWC |
| 3030LSWCR |
| V423230951 |
| U55GC3030LCW |
| NT3030 |
| NT3030LROD |
| NT3030LS |
