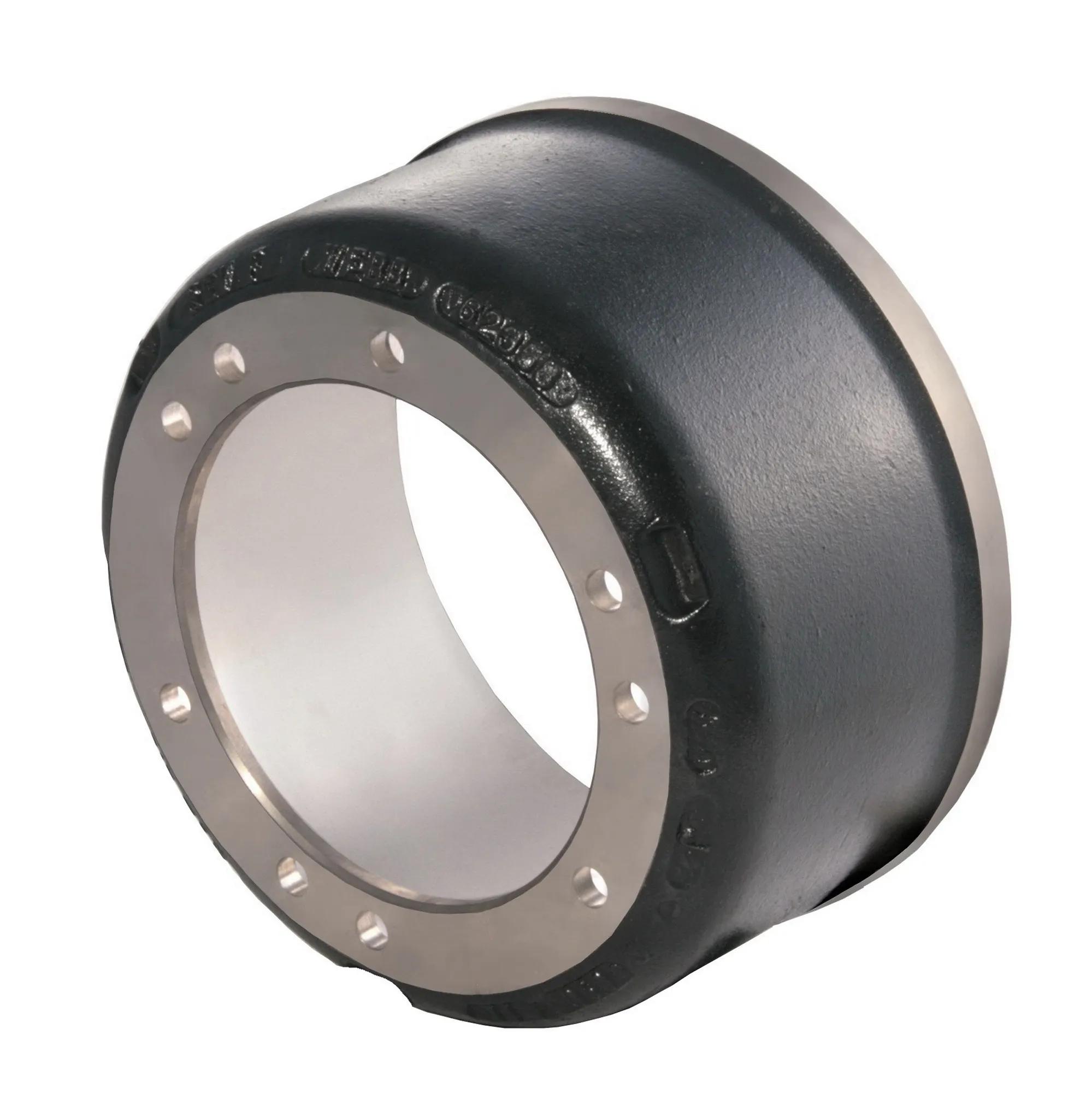

Brake Drum, 12-1/4 in x 5-1/2 in, 6 holes, (24,05 lb)
#WEB62358F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 7/16 in |
| Bolt Circle Diameter | 10 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 5-1/2 in |
| Brake Size | 12-1/4 in x 5-1/2 in |
| Brake Surface Diameter | 12-1/4 in |
| Brake Surface Width | 6-5/16 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Hole Size | 21/32 in |
| Maximum Diameter | 12-3/8 in |
| Overall Depth | 7-7/16 in |
| Pilot Diameter | 8-1/2 in (21.59 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 23 to 30 lbs |
| Weight (lbs) | 10.91 kg (24.05 lb) |
| Width | 6 in |
Interchanges & Equivalent parts:
| U00X60087 |
| X60087 |
| 2254439 |
| 62358 |
| 120947 |
| 1211 |
| 122322 |
| 122488 |
| 12358 |
| 5240210 |
| 62358B |
| 7487 |
| 91058 |
