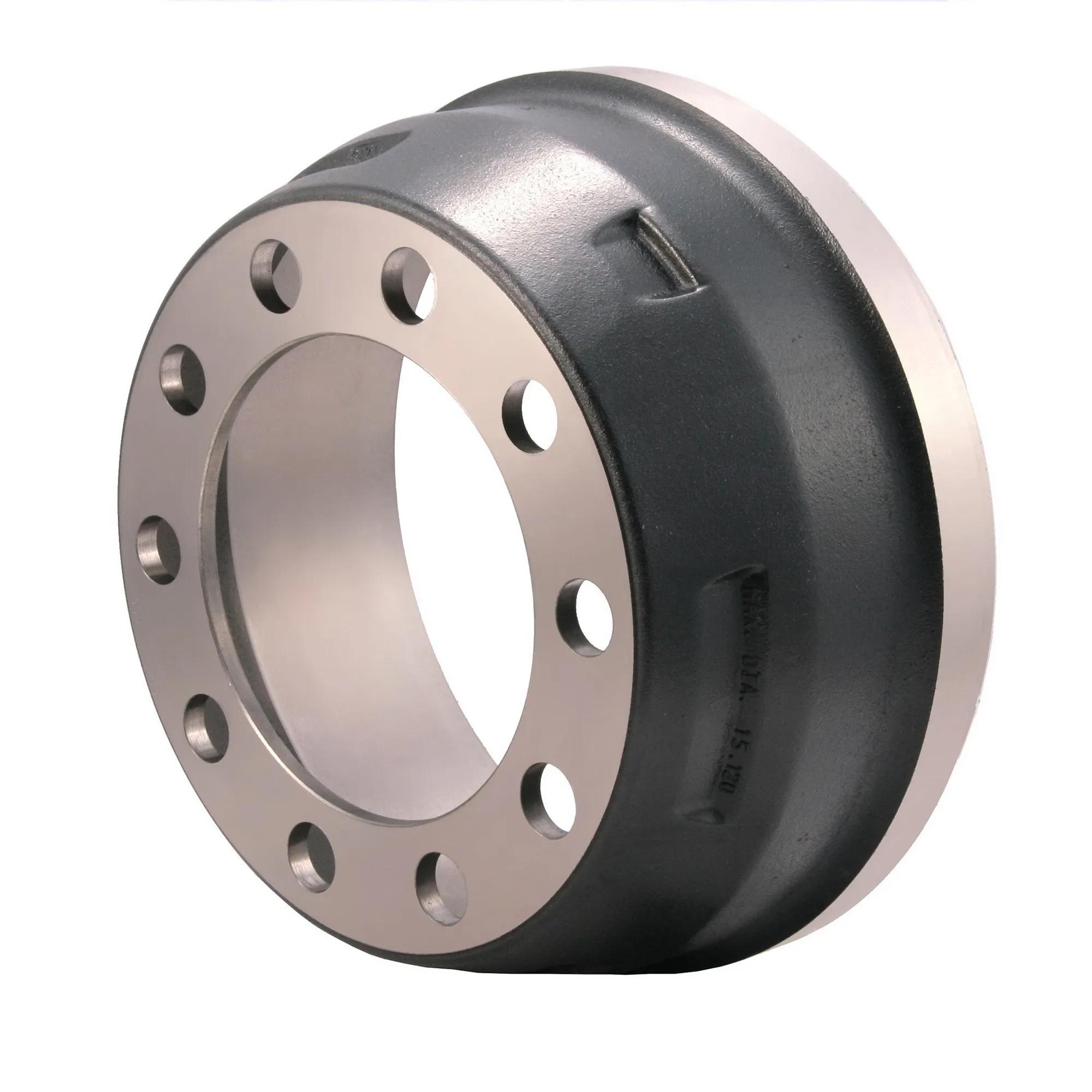

Brake Drum, 15 in x 4 in, 10 holes, (32,16 lb)
#WEB64489F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 4 in |
| Brake Size | 15 in x 4 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 4-7/16 in |
| Drum Mounting | Outboard |
| Hole Size | 1-5/16 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 7-27/32 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 31 to 40 lbs |
| Weight (lbs) | 14.59 kg (32.16 lb) |
| Width | 4 in |
Interchanges & Equivalent parts:
| 3638AX |
| 3638A |
| 3674A |
| 3674AX |
| 64489 |
| 64489B |
| 8219253 |
| 8219369 |
| 1648155C1 |
| 123020 |
| 3123020002 |
| 821-9369 |
| 14674 |
| 821-9253 |
