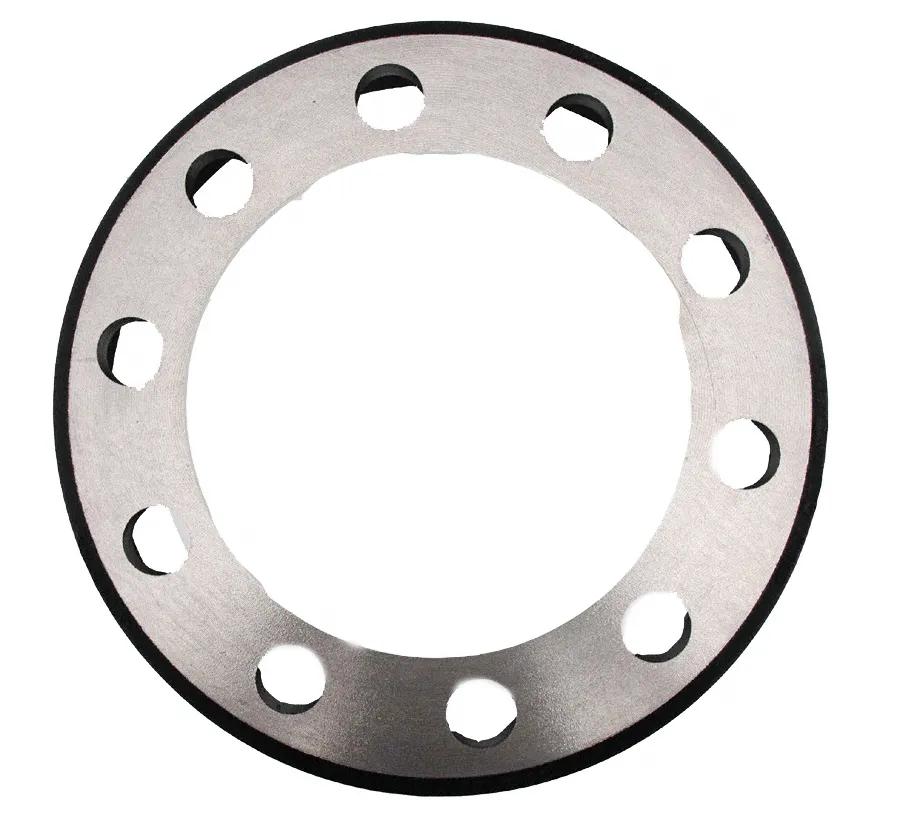

Brake Drum, 15 in x 4 in, 10 holes, (87 lb)
#GUN3158X
Product Overview
This 15 in x 4 in brake drum is designed for heavy-duty applications. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 4 in |
| Brake Size | 15 in x 4 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 4-13/32 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 27/32 in |
| Dust Shield Recess Diameter (B) | 16-1/8 in |
| Hole Size | 1-1/4 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 8-39/64 in |
| Overall Diameter | 17-1/8 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in (22.86 cm) |
| Sidewall Offset (N) | 1-19/64 in |
| Squealer Band Width (K) | 1-5/8 in |
| VMRS Code | 013-017-006 |
| Weight | 86 to 90 lbs |
| Weight (lbs) | 39.47 kg (87 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| 123312 |
| 1608459C17 |
| 3158 |
| U00X60491 |
| X60491 |
