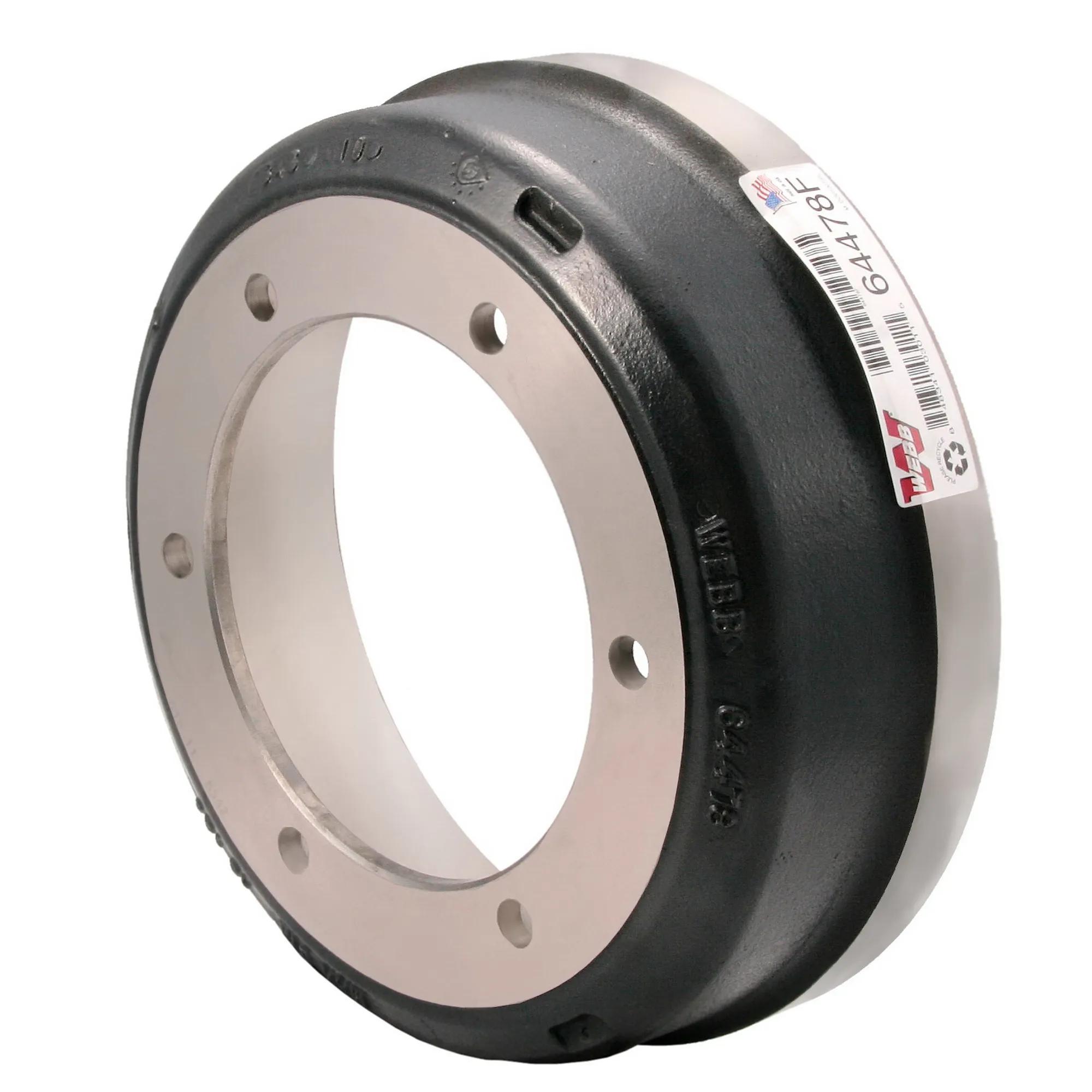

Brake Drum, 15 in x 4 in, holes, (59,08 lb)
#WEB64478F
Sommaire du produit
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Caractéristiques et avantages
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Spécifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 4 in |
| Brake Size | 15 in x 4 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 4-1/4 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Hole Size | 25/32 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 5-9/32 in |
| Pilot Diameter | 9-1/2 in (24,13 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 51 to 60 lbs |
| Weight (lbs) | 26,8 kg (59,08 lb) |
| Width | 4 in |
Interchanges et pièces équivalentes:
| 8219236 |
| 3023 |
| 3023X |
| 64478 |
| 64478B |
| 795658 |
