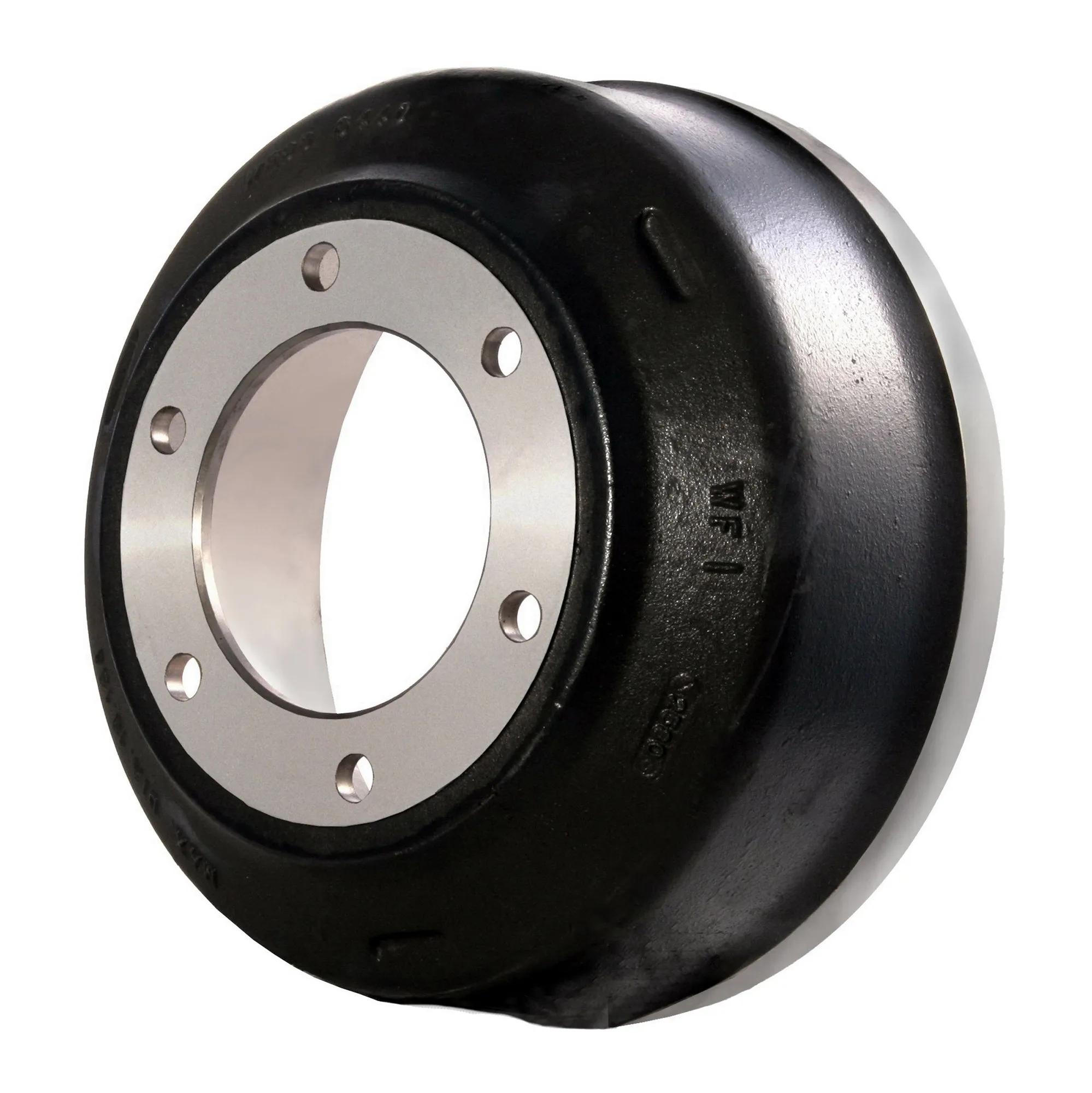

Brake Drum, 15 in x 5 in, 6 holes, (78,06 lb)
#WEB64403F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 7/16 in |
| Bolt Circle Diameter | 8-3/4 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 5 in |
| Brake Size | 15 in x 5 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 5-9/16 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Hole Size | 13/16 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 8 in |
| Pilot Diameter | 6-33/64 in (16.56 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 76 to 80 lbs |
| Weight (lbs) | 35.41 kg (78.06 lb) |
| Width | 5 in |
Interchanges & Equivalent parts:
| 64403 |
| 64403B |
