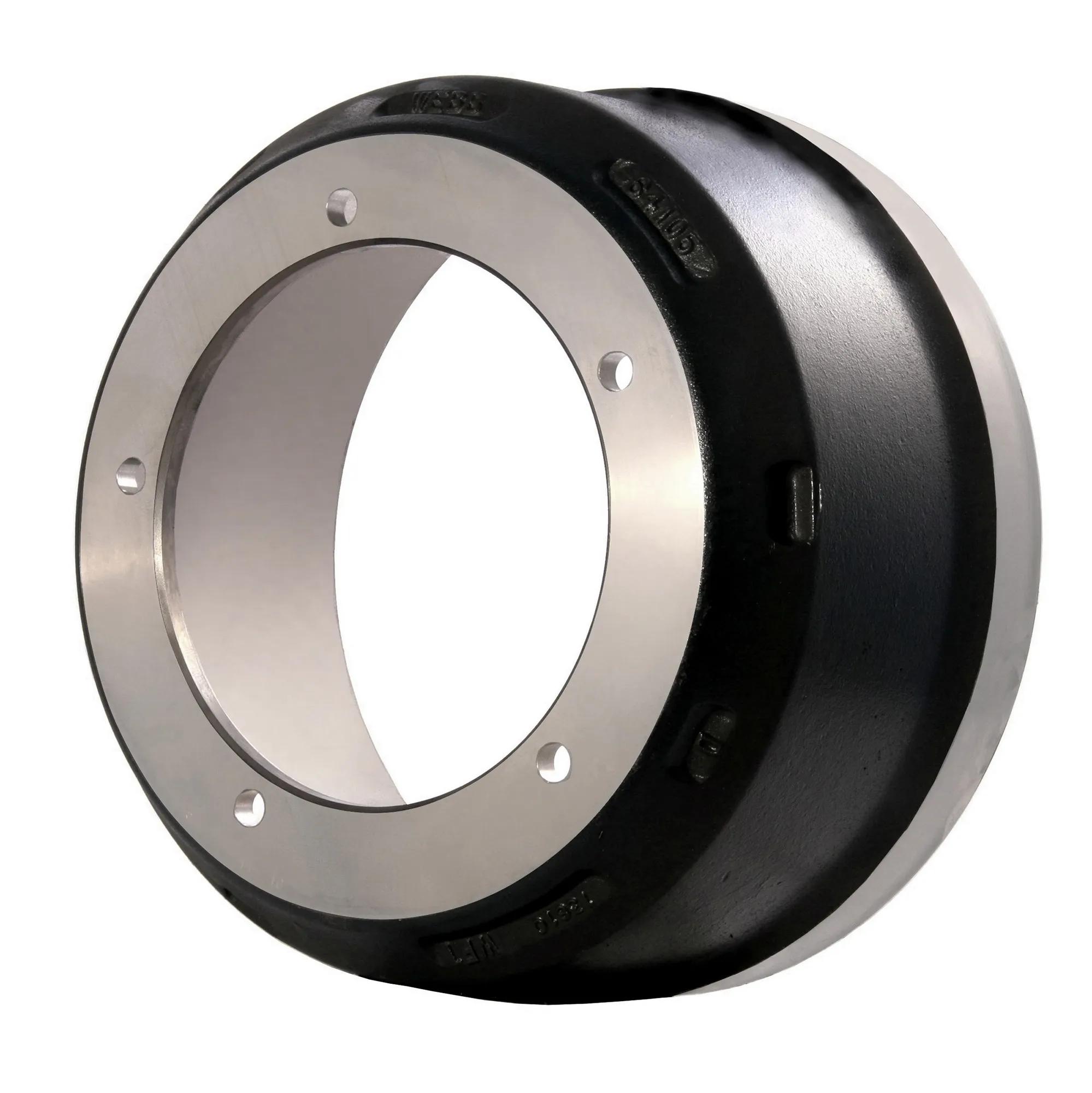

Brake Drum, 15 in x 6 in, 5 holes, (81,1 lb)
#WEB64105F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 5 |
| Brake Shoe Width | 6 in |
| Brake Size | 15 in x 6 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 6-1/2 in |
| Drum Mounting | Inboard |
| Hole Size | 21/32 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 8-1/2 in |
| Pilot Diameter | 9-3/4 in (24.77 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 81 to 85 lbs |
| Weight (lbs) | 36.79 kg (81.1 lb) |
| Width | 6 in |
Interchanges & Equivalent parts:
| GUN2401 |
| 2401 |
| 64105B |
| 2396596 |
| 2396985 |
| 2401X |
| 2415956 |
| 2425956 |
| 2496624 |
| 2496629 |
| 3772950 |
| 3796608 |
| 3799946 |
| 3990060 |
| 3996655 |
| 8219002 |
| 64105 |
| 5236901 |
| 120060 |
| 120092 |
| 1453 |
| 821-9002 |
| 85638 |
