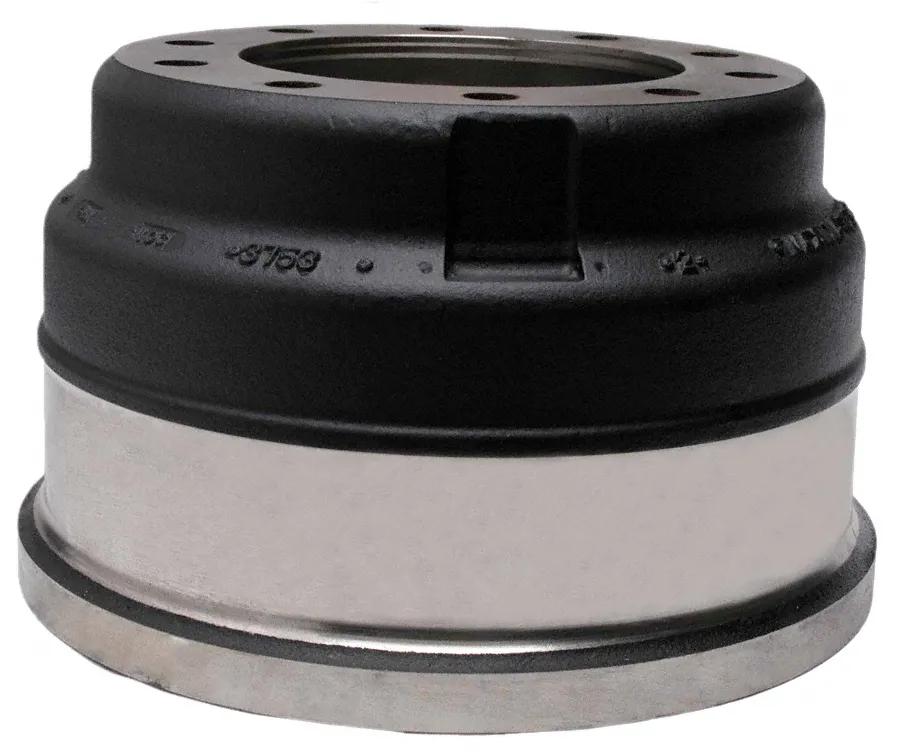

Brake Drum, 15 in x 7-9/64 in, 8 holes, (95 lb)
#GUN3753AX
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Additional Notes | Low Profile |
| Aftermarket Status | Active |
| Axle Location | Steer Axle |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 10-13/16 in (27.47 cm) |
| Bolt Circle Diameter (in.) | 1 in. |
| Bolt Hole (Number) | 8 |
| Brake Size | 15 in x 7-9/64 in |
| Brake Shoe Width | 7.140625 in (18.14 cm) |
| Brake Surface Diameter | 15 in (38.1 cm) |
| Brake Surface Width | 7-9/64 in (18.14 cm) |
| Brake Surface Width (E) | 7.14 |
| Drum Mount | Outboard |
| Drum Mounting | Outboard |
| Drum Type | BDC |
| Finished Weight | 95 lb |
| Hole Size | 1 in (2.54 cm) |
| Inside Finished Diameter (O) | 13 |
| Maximum Wear Diameter | 15.12 |
| Mounting Flange Diameter (F) | 13.3 |
| Mounting Flange Thickness (L) | 0.5 |
| Notes | Low Profile |
| Outside Sidewall Diameter (M) | 16.1 |
| Overall Depth | 10-9/32 in (26.12 cm) |
| Overall Depth (G) | 10.28 |
| Overall Diameter (A) | 17.4 |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in (22.86 cm) |
| Sidewall Offset (N) | 3.32 |
| Spoke, Disc or Spoke/Disc | Disc |
| Squealer Band Width (K) | 1-3/16 in (3.02 cm) |
| Weight | 91 to 95 lbs |
| Weight (lbs) | 43.1 kg (95 lb) |
| Wheel Type | Disc |
