Brake Drum, 15 in x 8-5/8 in, 10 holes, (103 lb)
#GUN3750X
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 15 in x 8-5/8 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 9-31/64 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDD |
| Hole Size | 1 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 12-13/64 in |
| Overall Diameter | 17-19/32 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |

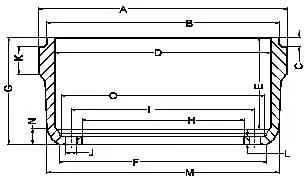

| Sidewall Offset (N) | 2-19/64 in |
| Squealer Band Width (K) | 1-13/64 in |
| VMRS Code | 013-017-006 |
| Weight | 101 to 105 lbs |
| Weight (lbs) | 47.27 kg (103 lb) |
| Wheel Type | Disc |
